Oil Level Monitoring

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

Oil level monitoring is provided by an oil level and temperature sensor that measures the oil level in the sump pan. The oil level can be displayed in the message center of the instrument cluster.

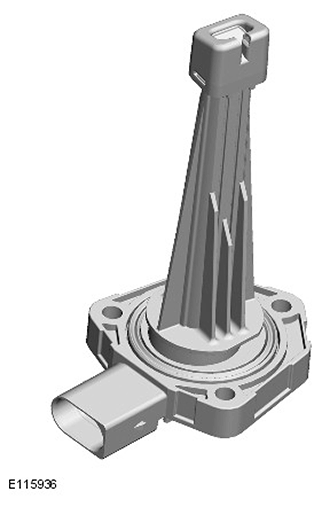

The oil level and temperature sensor supplies the ECM with a signal containing the level and temperature of the oil in the sump pan. The oil level and temperature sensor is secured to the bottom of the sump pan with three screws and sealed with a gasket.

The oil level and temperature sensor sends an ultrasonic pulse vertically upward and measures the time taken for the pulse to be reflected back from the top surface of the oil. This time is compared with the time taken for an ultrasonic pulse to travel a reference distance within the oil level and temperature sensor to determine the oil level. The oil level reading is combined with the oil temperature reading and transmitted in a PWM signal to the ECM.
