Oil Level Check

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

For additional information, refer to Engine Oil Draining and Filling (303-01A, General Procedures).

For accuracy, oil level checks should be performed with the vehicle on level ground when the oil is hot. The vehicle needs to stand for approximately 10 minutes, after the engine is switched off, to allow the oil to drain back into the sump pan and the oil level to stabilize. The oil level system will not give a reading until the oil level has stabilized.

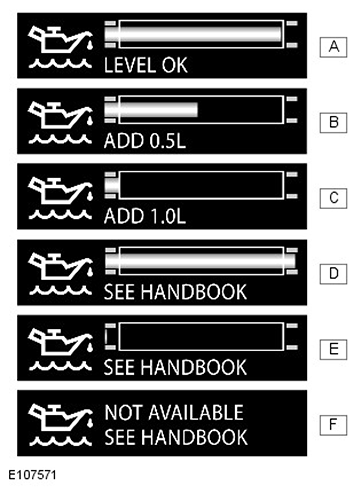

With the ignition on, the engine stopped and the transmission in P (park), repeatedly press the trip button on the end of the LH multifunction switch until the oil level icon and applicable message are displayed in the fuel gage/trip computer area of the message center, as shown below:

ITEM	DESCRIPTION
A	Oil level is between 50% and 100% of recommended level. No top-up required.
B	Oil level is between 12.5% and 50% percent of recommended level. Add 0.5 liter (0.53 US quart) of oil.
C	Oil level is between 0% and 12.5% of recommended level. Add 1 liter (1.06 US quarts) of oil.
D	Oil level is above maximum for safe operation. Reduce oil level to recommended level.
E	Oil level is below minimum for safe operation. Add 1.5 liters (1.59 US quarts) of oil, then recheck level.
F	Oil level is stabilizing. Wait 10 minutes and then recheck level. If this display is accompanied by the message ENGINE OIL LEVEL MONITOR SYSTEM FAULT, a fault with the oil level monitoring system is indicated.
