Engine Data Location

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

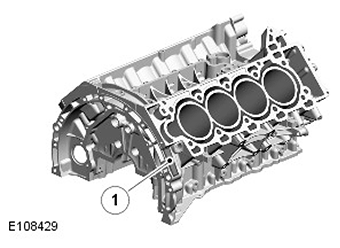

G11414525
ITEM DESCRIPTION
1 Engine data location

Engine data is marked on the cylinder block at the rear of the RH cylinder bank.
