Engine Structure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

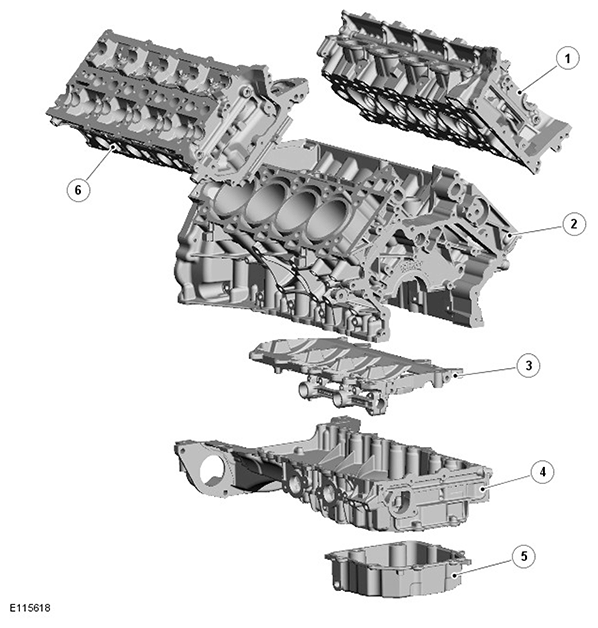

G11414522
ITEM DESCRIPTION
1 LH (left hand) cylinder head (bank B)
2 Cylinder block
3 Windage tray
4 Sump body
5 Sump pan
6 RH (right hand) cylinder head (bank A)
