Special Tool(S)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
G11415327
 303-1435 Engine Lifting Brackets Rear
G11415328
 303-1436 Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • If a new engine is to be installed, remove the intake manifold to access the top transmission retaining bolts.
  1. NOTE: This step requires the aid of another technician.

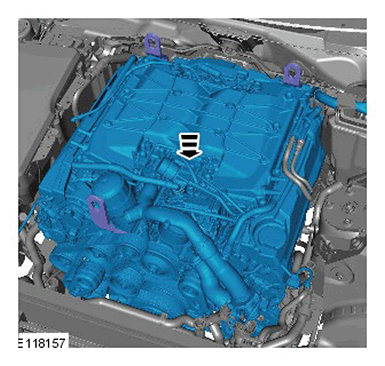

    G11415329

    Install the engine assembly.

    Special Tool(s):  303-1435, 303-1436

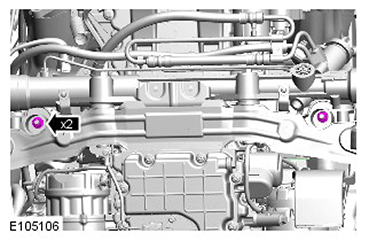

  2. G11415330

    Torque: 45 Nm

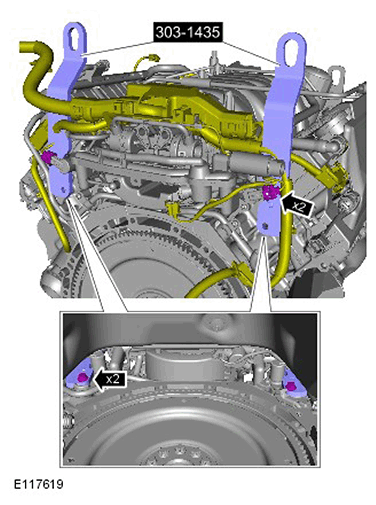

  3. G11415331

    Special Tool(s):  303-1435

  4. G11415332

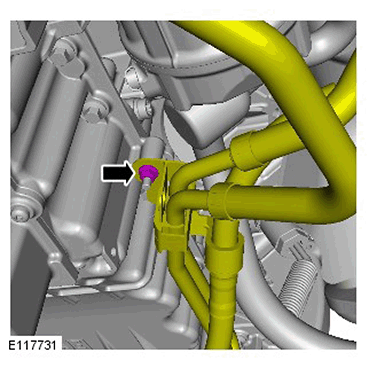

  5. G11415333

    Torque: 12 Nm

  6. CAUTION: Install new o-ring seals

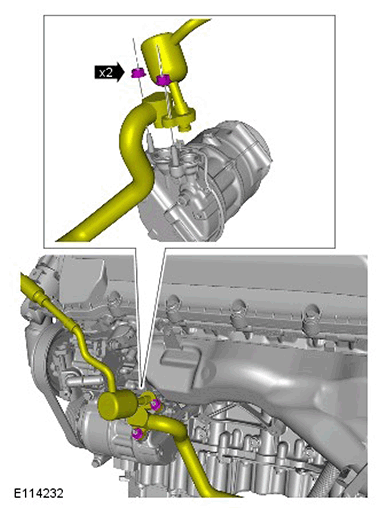

    G11415334

    Torque: 9 Nm

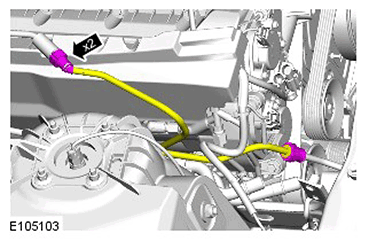

  7. G11415335

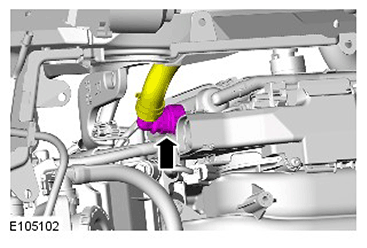

  8. G11415336
  9. NOTE: Remove and discard the blanking caps.

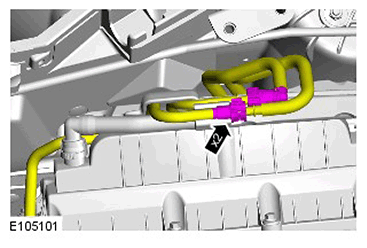

    G11415337

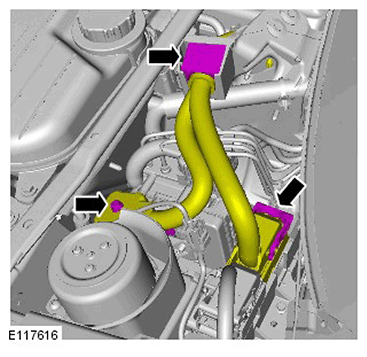

  10. G11415338

    Torque: 3 Nm

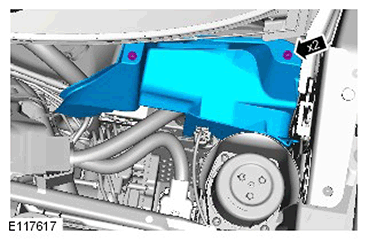

  11. G11415339

    Torque: 9 Nm

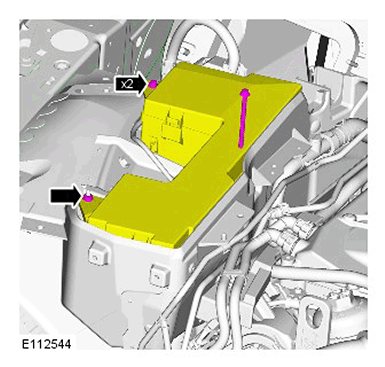

  12. G11415340

    Torque: 9 Nm

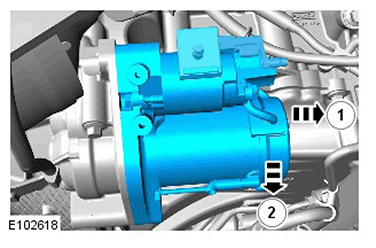

  13. G11415341

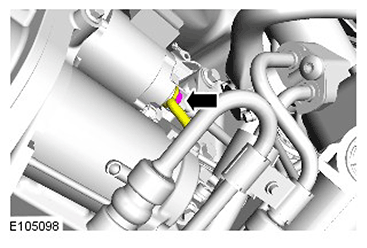

  14. G11415342

    Torque: 10 Nm

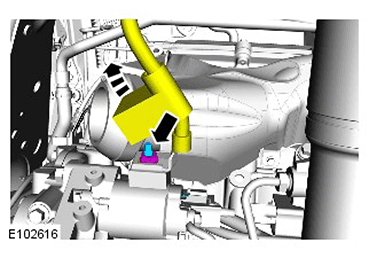

  15. G11415343

    Torque: 12 Nm

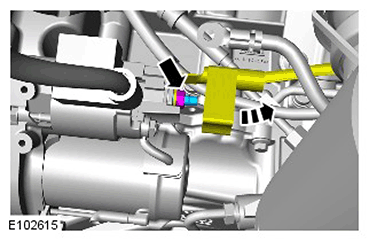

  16. G11415344

    Torque: 12 Nm

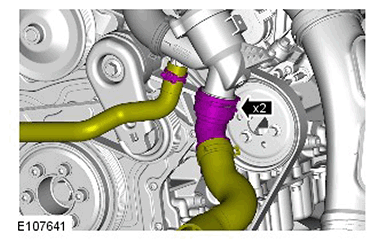

  17. G11415345
  18. Lower the vehicle.

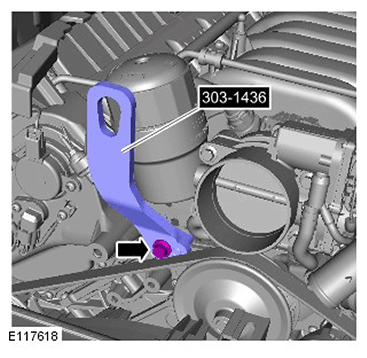

  19. G11415346

    Special Tool(s):  303-1436

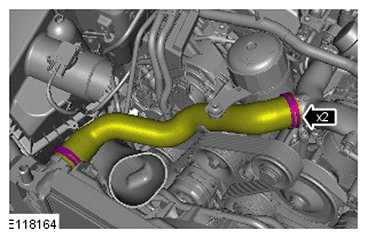

  20. G11415347

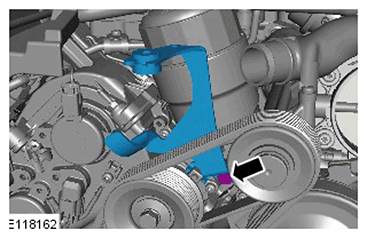

  21. G11415348

    Torque: 25 Nm

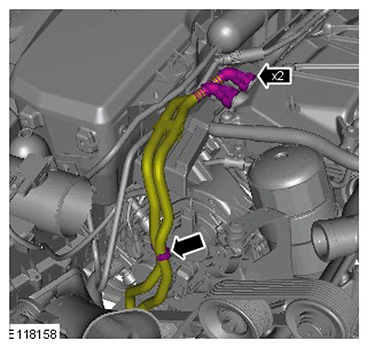

  22. G11415349

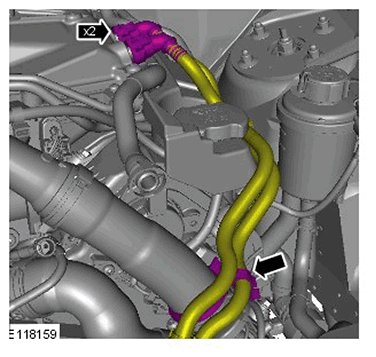

  23. G11415350

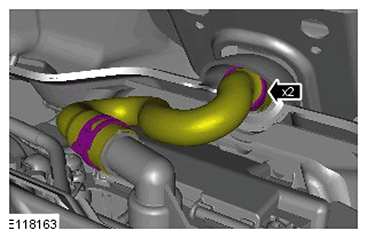

  24. G11415351

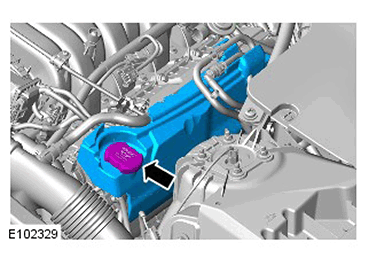

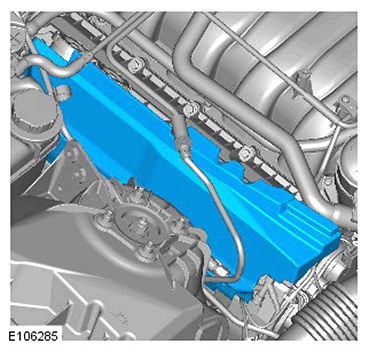

  25. G11415352
  26. G11415353
  27. Refer to: Power Steering Fluid Reservoir - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (211-02 Power Steering, Removal and Installation).
  28. Refer to: Secondary Bulkhead Panel LH - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation).
  29. Refer to: Secondary Bulkhead Panel RH - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation).
  30. Refer to: *** Transmission - V8 5.0L Petrol/V8 S/C 5.0L Petrol (307-01 Automatic Transmission/Transaxle - TDV6 3.0L Diesel/V8 5.0L Petrol/V8 S/C 5.0L Petrol, Installation).
  31. Refer to: Cooling Fan Motor and Shroud (303-03A Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  32. Refer to: Hood (501-02 Front End Body Panels, Removal and Installation).
  33. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).
  34. Refer to: Cooling System Partial Draining and Vacuum Filling (303-03C Engine Cooling - V6 S/C 3.0L Petrol, General Procedures).
  35. Refer to: Air Cleaner RH (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  36. Refer to: Air Cleaner LH (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  37. Refer to: Cowl Vent Screen (501-02 Front End Body Panels, Removal and Installation).
  38. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
