Special Tool(S)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
G11415301
 303-1435 Engine Lifting Brackets Rear
G11415302
 303-1436 Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • If a new engine is to be installed, remove the intake manifold to access the top transmission retaining bolts.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Cowl Vent Screen (501-02 Front End Body Panels, Removal and Installation).
  4. Refer to: Air Cleaner LH (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  5. Refer to: Air Cleaner RH (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  6. Refer to: Cooling System Partial Draining, Filling and Bleeding - V8 S/C 5.0L Petrol (303-03A Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).
  7. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).
  8. Refer to: Hood (501-02 Front End Body Panels, Removal and Installation).
  9. Refer to: Cooling Fan Motor and Shroud (303-03C Engine Cooling - V6 S/C 3.0L Petrol, Removal and Installation).
  10. Refer to: *** Transmission - V8 5.0L Petrol/V8 S/C 5.0L Petrol (307-01 Automatic Transmission/Transaxle - TDV6 3.0L Diesel/V8 5.0L Petrol/V8 S/C 5.0L Petrol, Installation).
  11. Refer to: Coolant Expansion Tank (303-03C Engine Cooling - V6 S/C 3.0L Petrol, Removal and Installation).
  12. Refer to: Secondary Bulkhead Panel RH - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation).
  13. Refer to: Secondary Bulkhead Panel LH - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation).
  14. Refer to: Power Steering Fluid Reservoir - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (211-02 Power Steering, Removal and Installation).

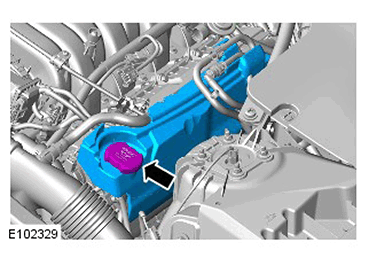

  15. G11415303

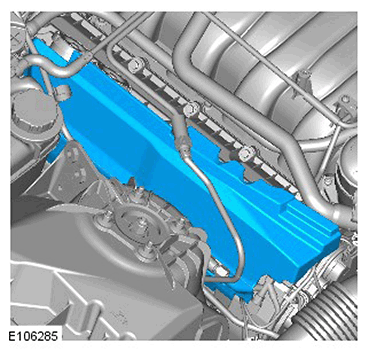

  16. G11415304

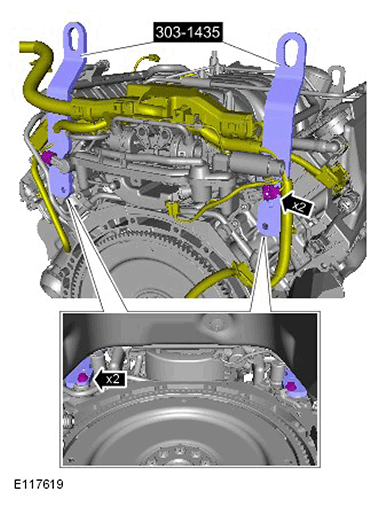

  17. G11415305

    Special Tool(s):  303-1435

    Torque: 25 Nm

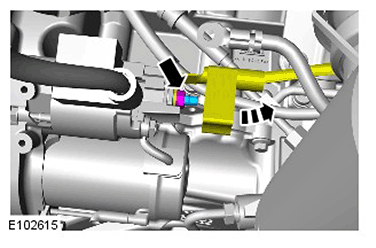

  18. G11415306

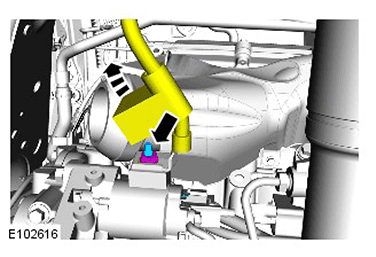

  19. G11415307

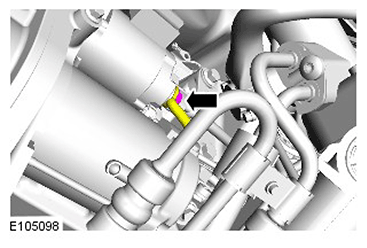

  20. G11415308

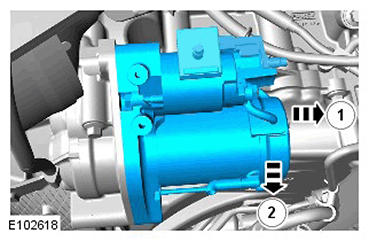

  21. G11415309
  22. Lower the vehicle.

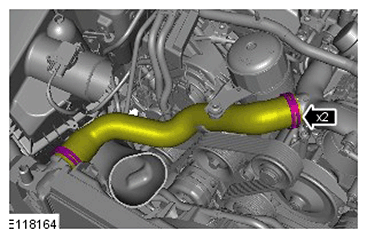

  23. G11415310

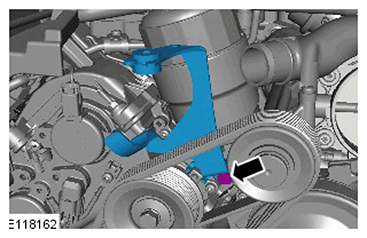

  24. G11415311

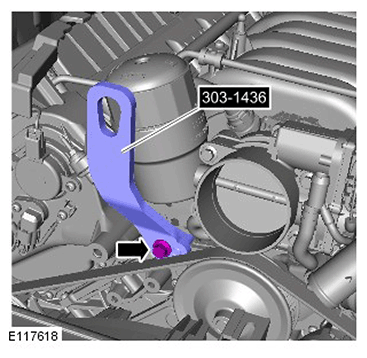

  25. G11415312
    • Special Tool(s):  303-1436

      Torque: 25 Nm

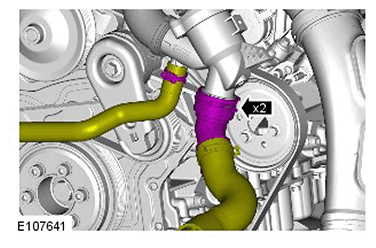

  26. G11415313

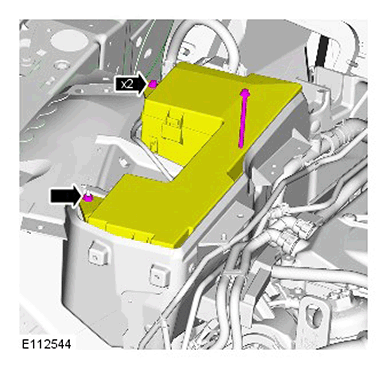

  27. G11415314

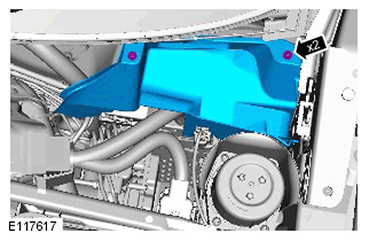

  28. G11415315

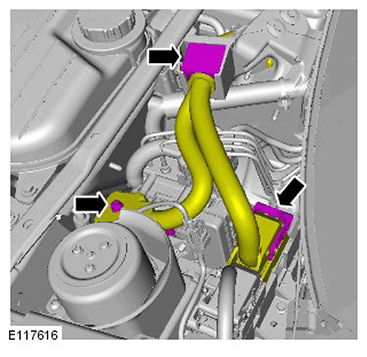

  29. G11415316
  30. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

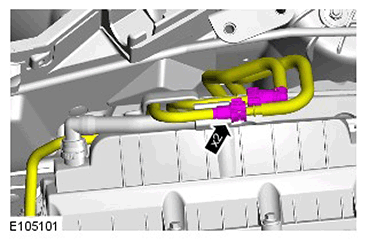

    G11415317

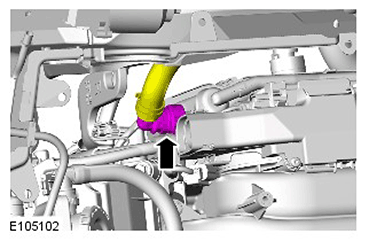

  31. G11415318

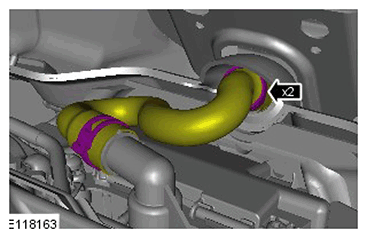

  32. G11415319

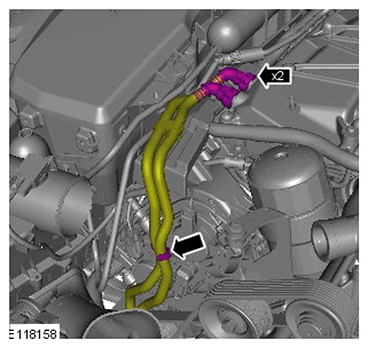

  33. G11415320

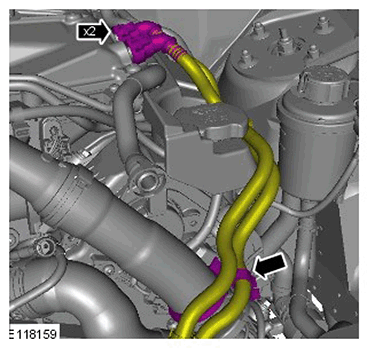

  34. G11415321

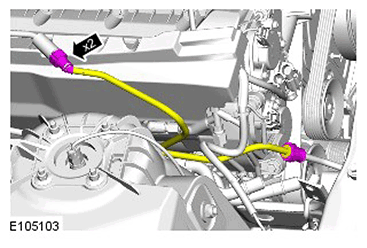

  35. G11415322

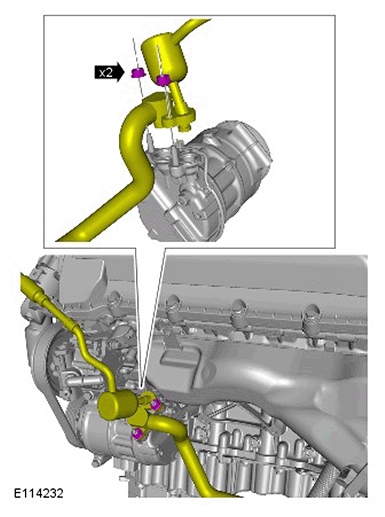

  36. G11415323

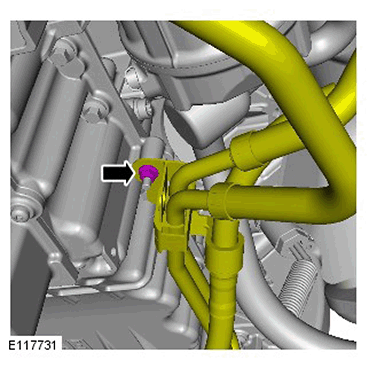

  37. G11415324

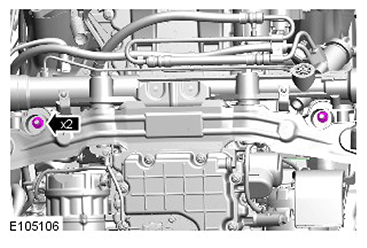

  38. G11415325

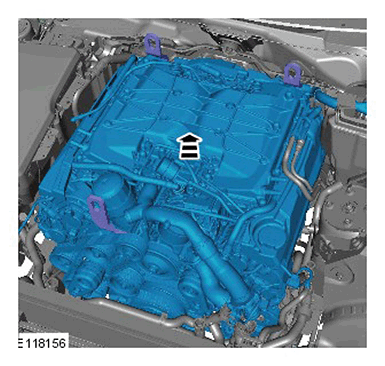

  39. NOTE: This step requires the aid of another technician.
    G11415326

    Using a suitable tool, remove the engine.

    Special Tool(s):  303-1435, 303-1436
