Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Camshaft LH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  4. Refer to: Exhaust Manifold LH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

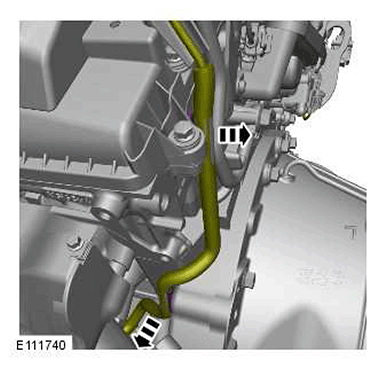

  5. G11414717

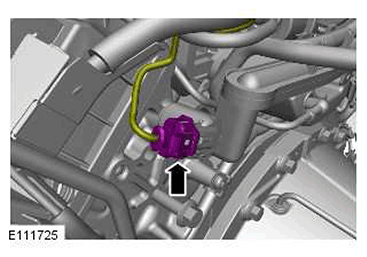

  6. G11414718
  7. CAUTION: Discard the seal.
    NOTE: Engine shown removed for clarity.

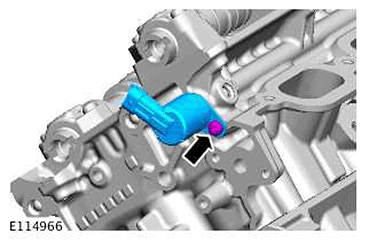

    G11414719

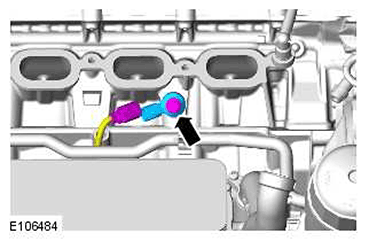

  8. G11414720

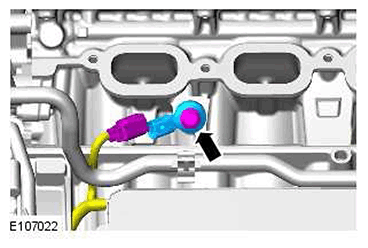

  9. G11414721
  10. NOTE: Clamp the hose to minimize coolant loss.

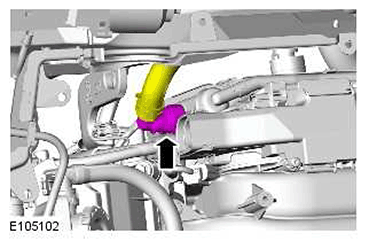

    G11414722
  11. NOTE: Clamp the hose to minimize coolant loss.

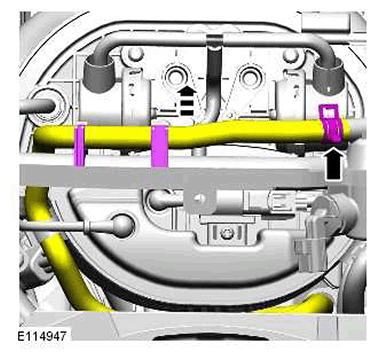

    G11414723

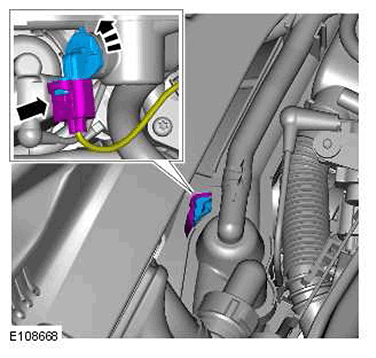

  12. G11414724
  13. CAUTION: Discard the seals.

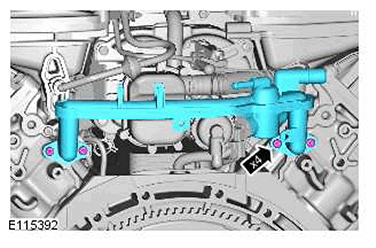

    G11414725

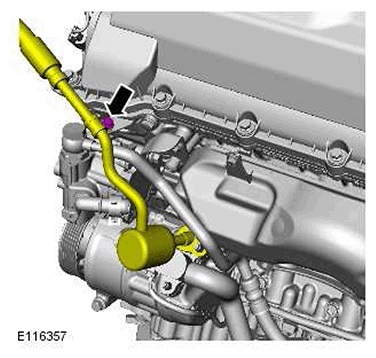

  14. G11414726

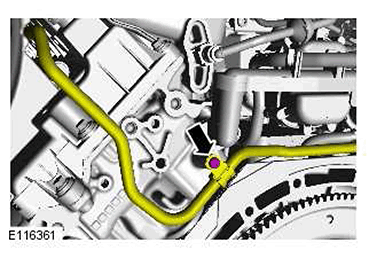

  15. G11414727

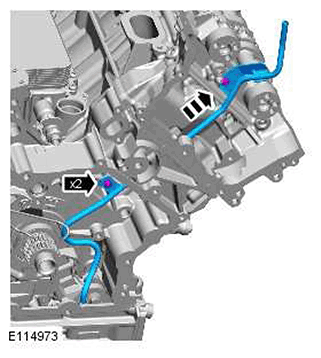

  16. G11414728

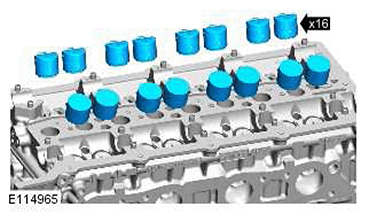

  17. CAUTION:
    • If a new cylinder head has been installed then new tappets must be installed.
    • If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
    NOTE: Left-hand shown, right-hand similar.
    G11414729

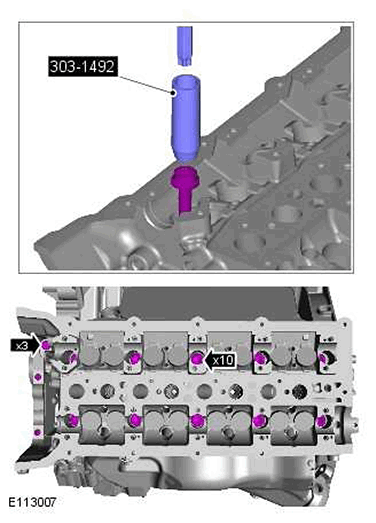

  18. G11414730

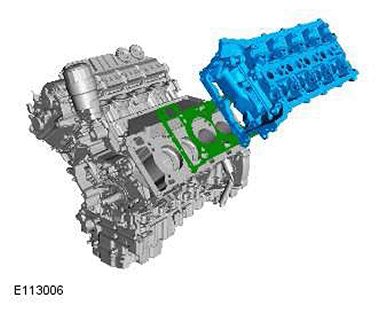

  19. G11414731
