Removal And Installation: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

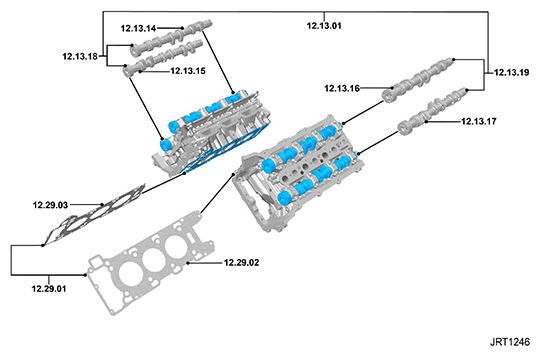

12.29.02 CYLINDER HEAD GASKET - LEFT HAND - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 22.6
G11414707

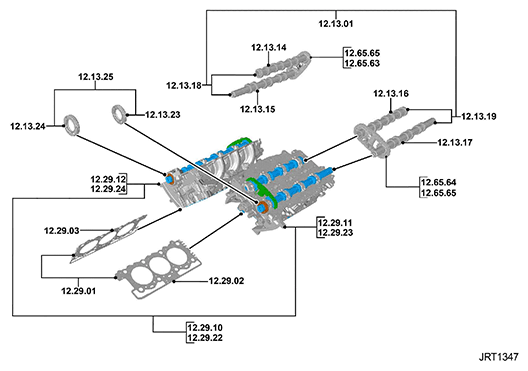

12.29.02 CYLINDER HEAD GASKET - LEFT HAND - RENEW 3000 CC, TDV6 13.7
G11414708
12.29.02 CYLINDER HEAD GASKET - LEFT HAND - RENEW LEFT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 22.8
G11414709

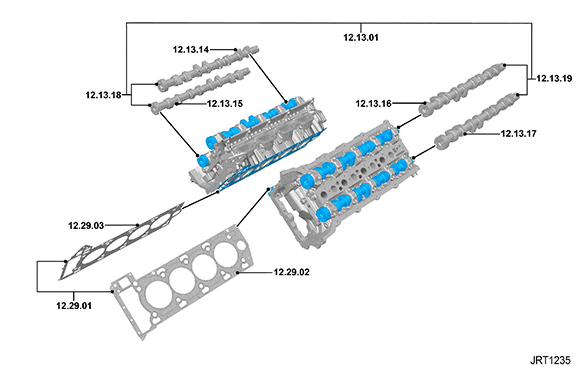

12.29.02 CYLINDER HEAD GASKET - LEFT HAND - RENEW LEFT HAND DRIVE, 5000 CC, AJ V8, SUPERCHARGED 21
G11414710
12.29.02 CYLINDER HEAD GASKET - LEFT HAND - RENEW RIGHT HAND DRIVE, 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 21.5
G11414711
12.29.02 CYLINDER HEAD GASKET - LEFT HAND - RENEW RIGHT HAND DRIVE, 5000 CC, AJ V8, SUPERCHARGED 21
G11414712

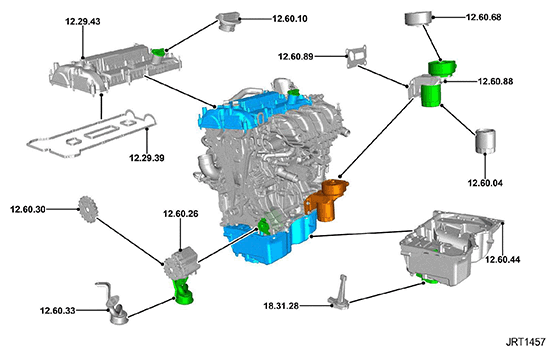

12.29.43 CAMSHAFT COVER - LEFT HAND - RENEW 2000 CC, GTDI 1.1
G11414713

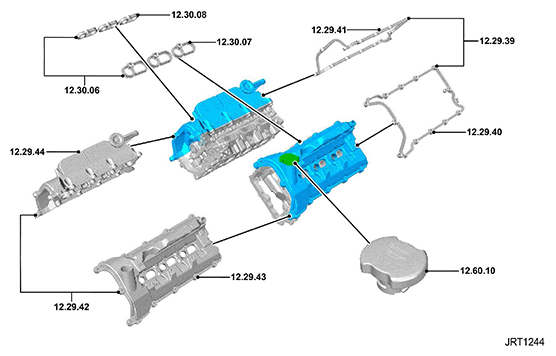

12.29.43 CAMSHAFT COVER - LEFT HAND - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED 6.3
G11414714

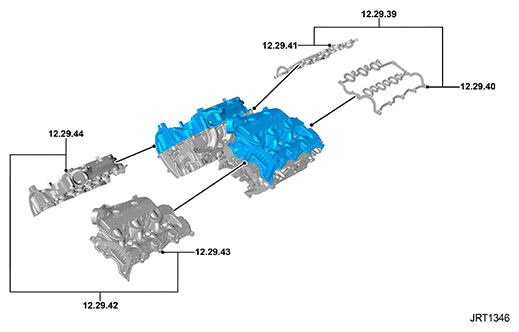

12.29.43 CAMSHAFT COVER - LEFT HAND - RENEW 3000 CC, TDV6 6.9
G11414715

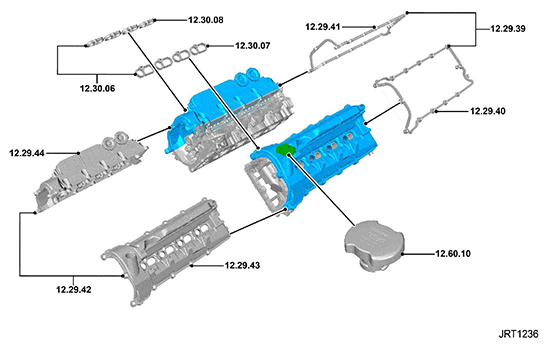

12.29.43 CAMSHAFT COVER - LEFT HAND - RENEW 5000 CC, AJ V8, SUPERCHARGED 6.4
G11414716
