Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

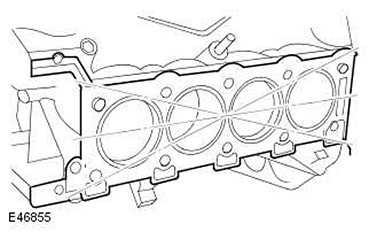

  1. CAUTION: An acceptable flatness of the cylinder head is 0.1mm.
    G11414732

    Check cylinder head face for distortion, across the center and from corner to corner.

  2. WARNING: Make sure care is taken when handling the cylinder head gasket.
    CAUTION:
    • The head gasket must be installed over the cylinder block dowels.
    • Make sure that the mating faces are clean and free of foreign material.
    NOTE: Install a new cylinder head gasket.

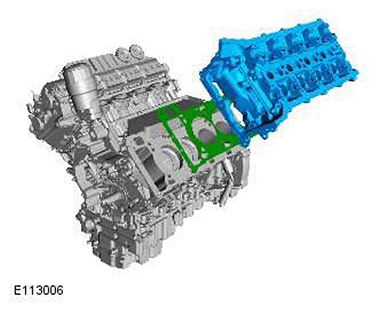

    G11414733
  3. CAUTION: Make sure that new cylinder head bolts are installed.
    NOTE: Tighten the bolts in the indicated sequence.
    G11414734

    Torque: 20 Nm

  4. NOTE: Tighten the bolts in the indicated sequence.
    G11414735

    Torque: 35 Nm

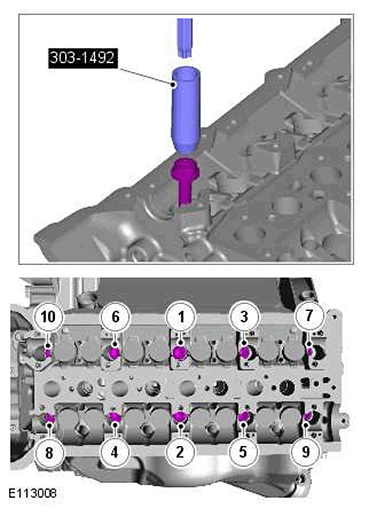

  5. NOTE: Tighten the bolts in the indicated sequence.
    G11414736

    Tighten the bolts 1 to 10, a further 90 degrees.

  6. NOTE: Tighten the bolts in the indicated sequence.
    G11414737

    Tighten the bolts 1 to 10, a further 120 degrees.

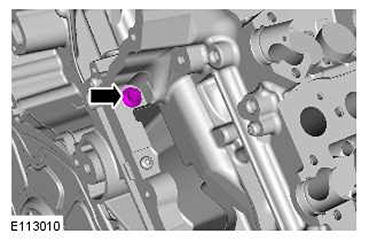

  7. G11414738

    Torque: 25 Nm

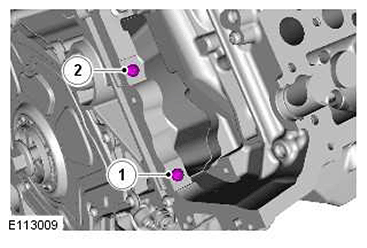

  8. NOTE: Tighten the bolts in the indicated sequence.
    G11414739

    Torque: 12 Nm

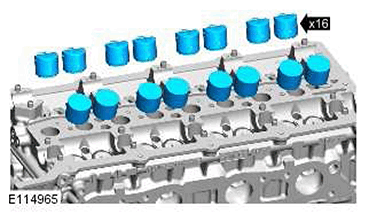

  9. CAUTION:
    • If a new cylinder head has been installed then new tappets must be installed.
    • If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
    G11414740

    Lubricate the valve tappets with clean engine oil.

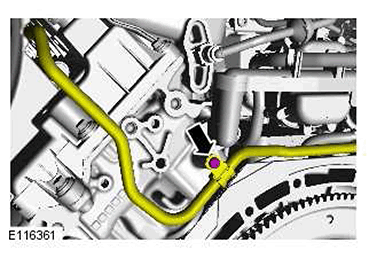

  10. G11414741

    Torque: 10 Nm

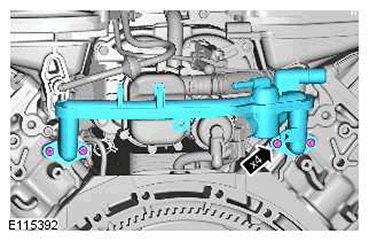

  11. CAUTION: Install the new seals.
    G11414742

    Torque: 10 Nm

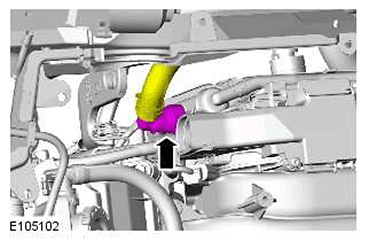

  12. G11414743

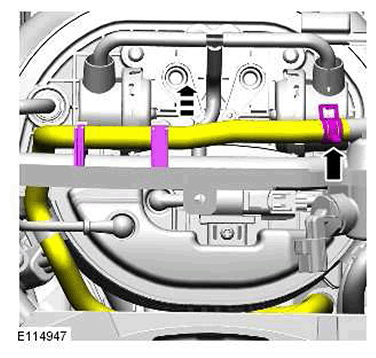

  13. G11414744

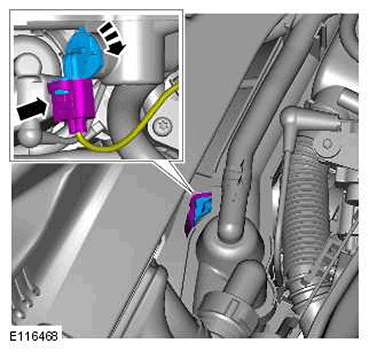

  14. G11414745

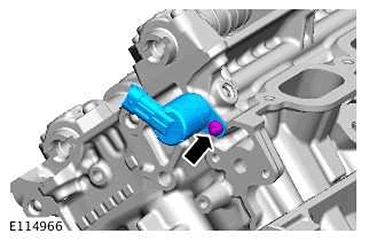

  15. CAUTION: Install a new seal.
    NOTE: Engine shown removed for clarity.
    G11414746

    Torque: 12 Nm

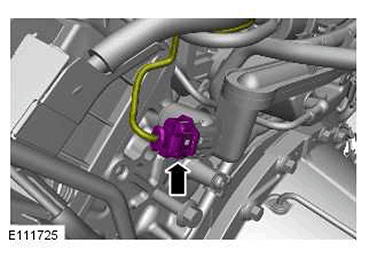

  16. G11414747

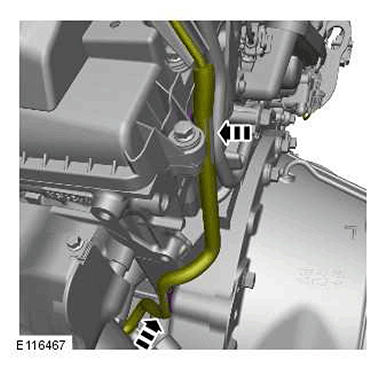

  17. G11414748

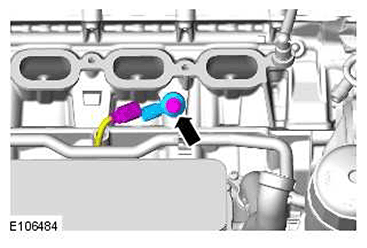

  18. G11414749

    Torque: 20 Nm

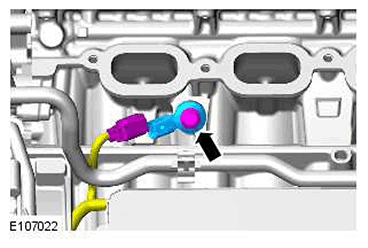

  19. G11414750

    Torque: 20 Nm

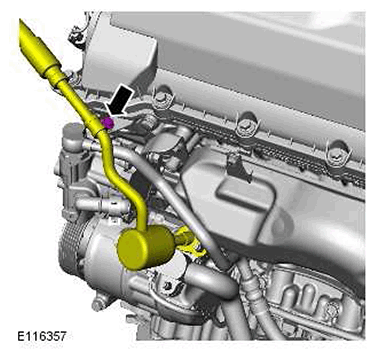

  20. G11414751

    Torque: 12 Nm

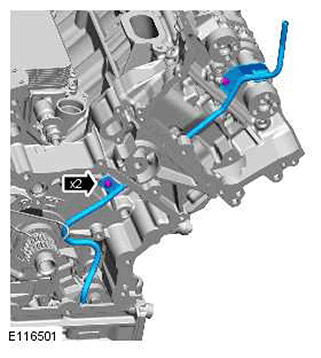

  21. G11414752

    Torque: 12 Nm

  22. Refer to: Exhaust Manifold LH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  23. Refer to: Camshaft LH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  24. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
