Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Use only a plastic scraper when removing the sealing material.
    • Make sure that the mating faces are clean and free of foreign material.
    • Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

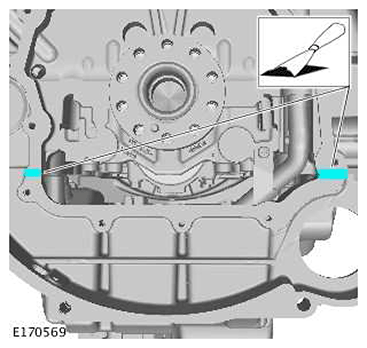

    G11414696
  2. CAUTION: Make sure that the Land Rover approved sealant, covers the mating faces of the cylinder block and the oil pan.

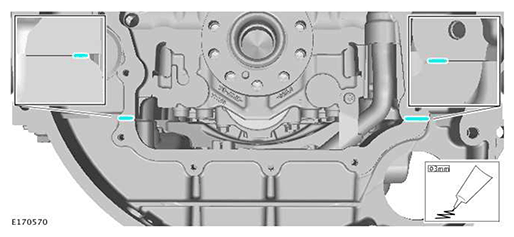

    G11414697

    Apply RTV sealant (Loctite 5901G) in a 2-3mm diameter to the areas shown, and install the engine rear oil seal plate within 7 minutes.

  3. CAUTION: Make sure that the special tool is correctly located.

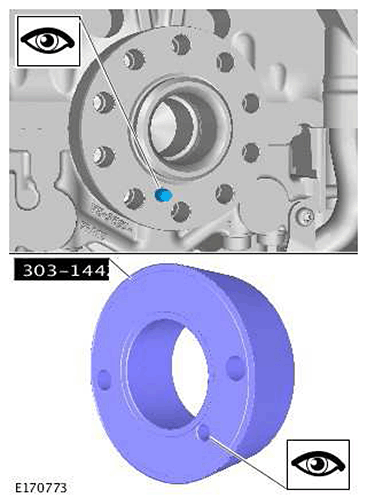

    G11414698

    Special Tool(s):  303-1442

  4. NOTE: Install the bolts finger tight.

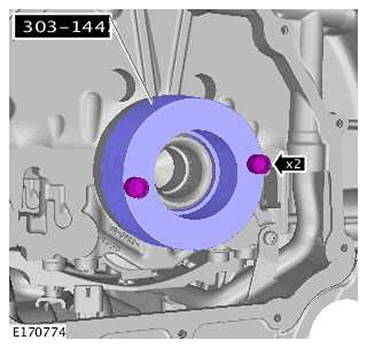

    G11414699

    Install the special tool.

    Special Tool(s):  303-1442

  5. CAUTION: Do not fully install the component. Maintain a clearance of 8mm, between the rear oil seal plate and the cylinder block, as smearing of the sealant may occur.

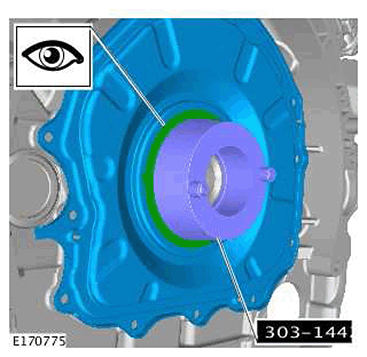

    G11414700

    Special Tool(s):  303-1442

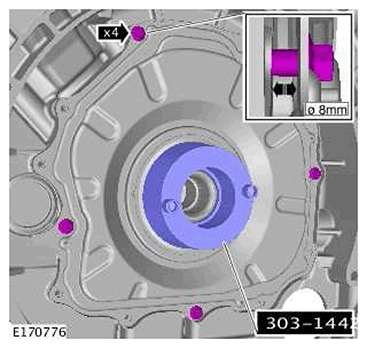

  6. G11414701

    Install the bolts and maintain the clearance of 8mm.

    Special Tool(s):  303-1442

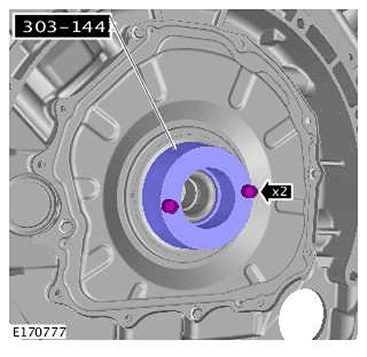

  7. G11414702

    Remove the special tool.

    Special Tool(s):  303-1442

  8. CAUTION: Apply pressure to the rear oil seal plate in the sequence shown, when installing the special tool.

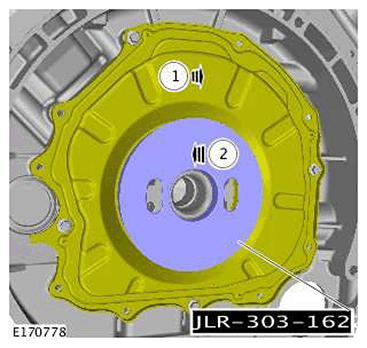

    G11414703

    Special Tool(s):  JLR-303-1622

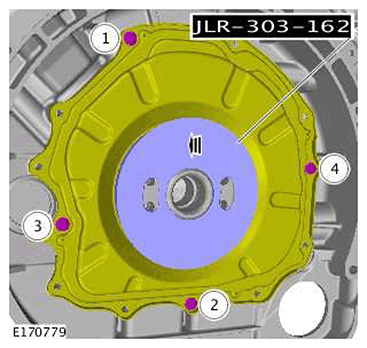

  9. NOTE: Tighten the bolts in the indicated sequence.
    G11414704

    Using the special tool, install the component.

    Special Tool(s):  JLR-303-1622

    Torque: 11 Nm

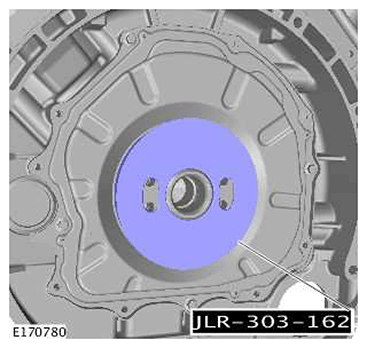

  10. G11414705

    Remove the special tool.

    Special Tool(s):  JLR-303-1622

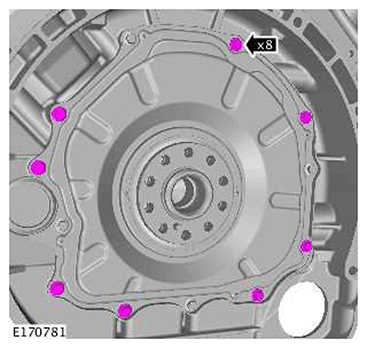

  11. G11414706

    Torque: 11 Nm

  12. Refer to: Flexplate  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
