Cooling Fans and Motors Assembly
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

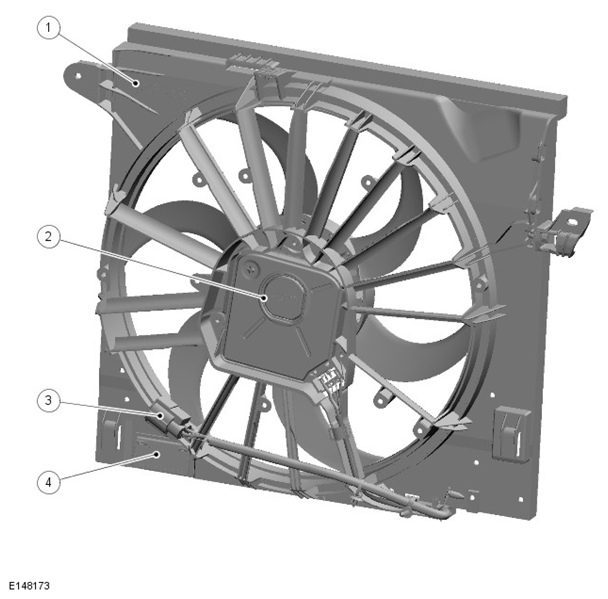

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fan shroud |
| 2 | Cooling fan and motor |
| 3 | Electric socket |
| 4 | Speed flap |
The cooling fan is located behind the radiator in a shroud which is attached to the radiator with 4 plastic clips.
A cooling fan is used for both engine radiator and A/C condenser cooling. The fan is mounted in the fan shroud.
The shroud and the fan are supplied as one assembly and individual parts are not serviceable.
