Fuel Supply Line Pressure Sensor (G1867773): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
Make sure that all openings are sealed. Use new blanking caps.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (General Information, Description and Operation).
Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Fuel System - General Information, General Procedures).
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

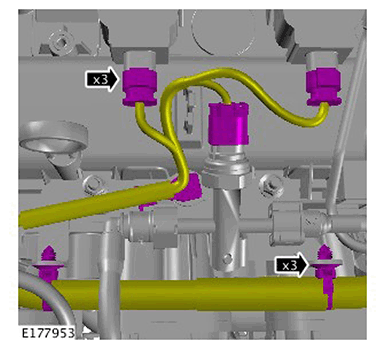

Refer to: Engine Cover - GTDi 2.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).

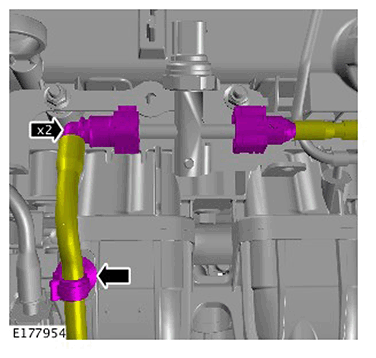

WARNING: Be prepared to catch escaping fluid.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.
WARNING: Be prepared to catch escaping fluid.

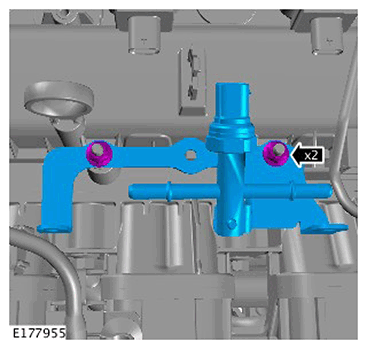

Torque Specification: 9 Nm
