Component Location
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

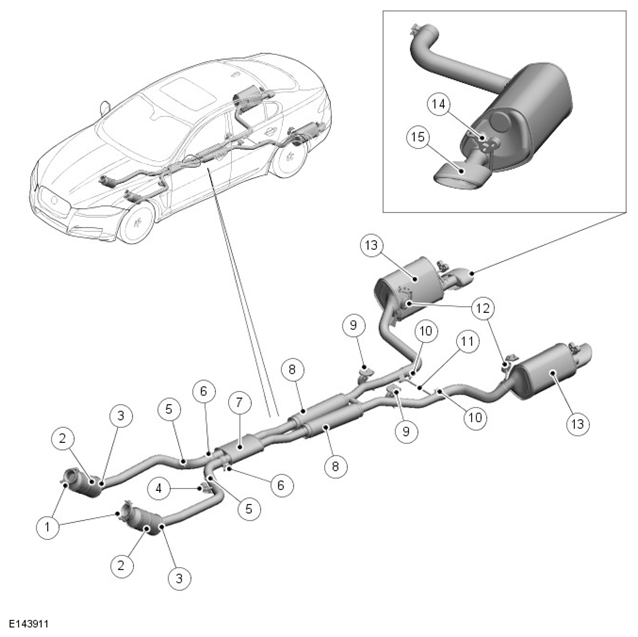

| ITEM | DESCRIPTION |
|---|---|
| 1 | Manifold flange (2 off) |
| 2 | Mid-catalyst heated oxygen sensor (HO2S) (2 off) |
| 3 | Catalytic converter (2 off) |
| 4 | Mass damper |
| 5 | Post catalyst heated oxygen sensor (HO2S) (2 off) |
| 6 | Graphite clamp (2 off) |
| 7 | Front silencer |
| 8 | Center silencer (2 off) |
| 9 | Mounting rubber (2 off) |
| 10 | Clamp (2 off) |
| 11 | Bracket |
| 12 | Mounting rubber (2 off) |
| 13 | Rear silencer (2 off) |
| 14 | Mounting rubber (2 off) |
| 15 | Exhaust trim (2 off) |
