Speed Control Switch (G1267376): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Make the SRS system safe.

    Refer to: SUPPLEMENTAL RESTRAINT SYSTEM (SRS) HEALTH AND SAFETY

  2. Refer to: Battery Disconnect and Connect (General Procedures).
  3. Refer to: Driver Airbag Module (Removal and Installation).

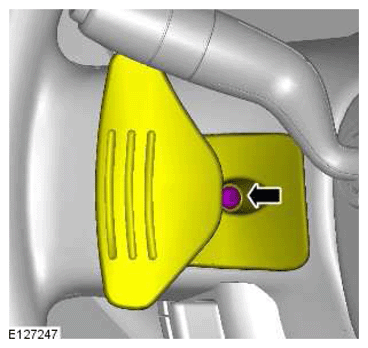

  4. NOTE: Right-hand shown, left-hand similar.
    G11424342

    Torque: 2 Nm

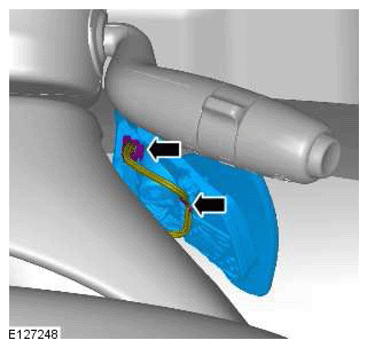

  5. NOTE: Right-hand shown, left-hand similar.
    G11424343

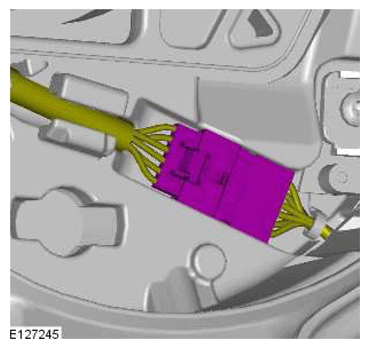

  6. G11424344

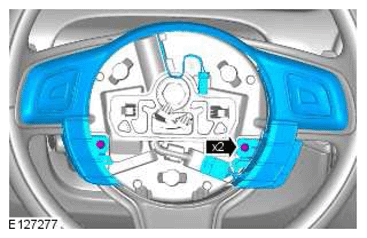

  7. G11424345

    Carefully release the clips.

    Torque: 2 Nm

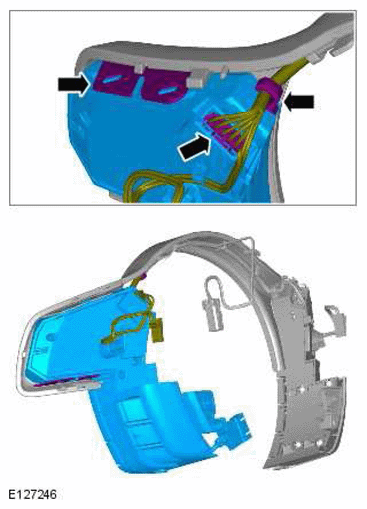

  8. G11424346

    Carefully release the clips.
