Adaptive Speed Control Module (G1875244): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. CAUTION: Protect the surrounding paintwork to avoid damage.
    G11424348

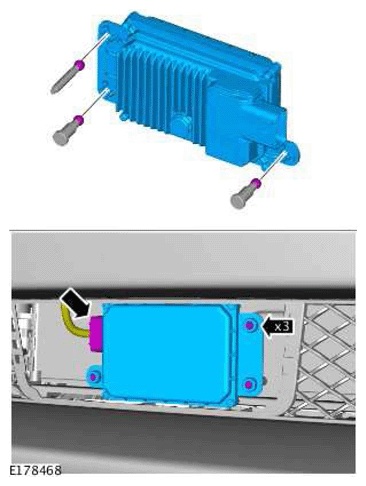

  2. NOTE: Make sure that the sensor is correctly located to the bracket. Audible clicks will be heard to confirm connection.
    G11424349

    Use a suitable tool to release the sensor from the retaining bracket.
