Adaptive Speed Control Module Adjustment (G1875243): Check

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure details how to adjust the speed control sensor vertically. There is no horizontal adjustment required.

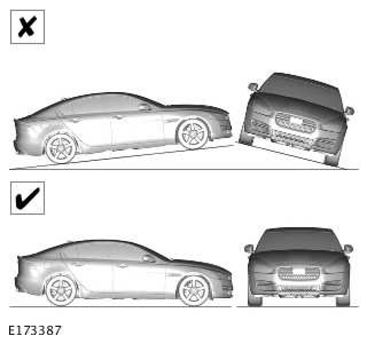

  1. NOTE: Make sure that the vehicle is standing on a level surface.
    G11424331

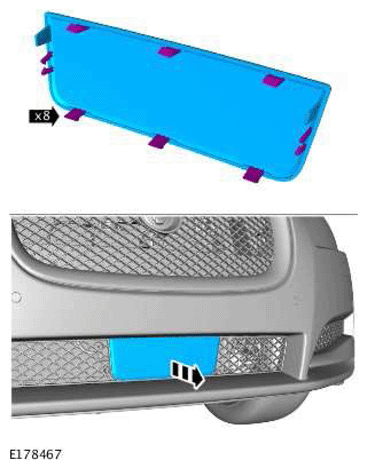

  2. CAUTION: Protect the surrounding paintwork to avoid damage.
    G11424332

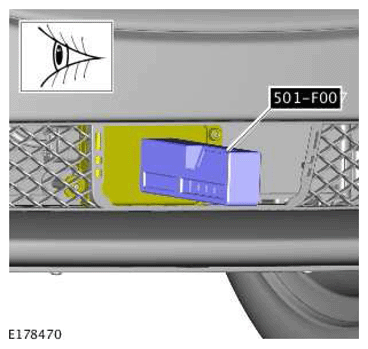

  3. G11424333

    Using the special tool, check the speed control sensor is level, (+/- 0.5 degree).

    Special Tool(s):  501-F007
