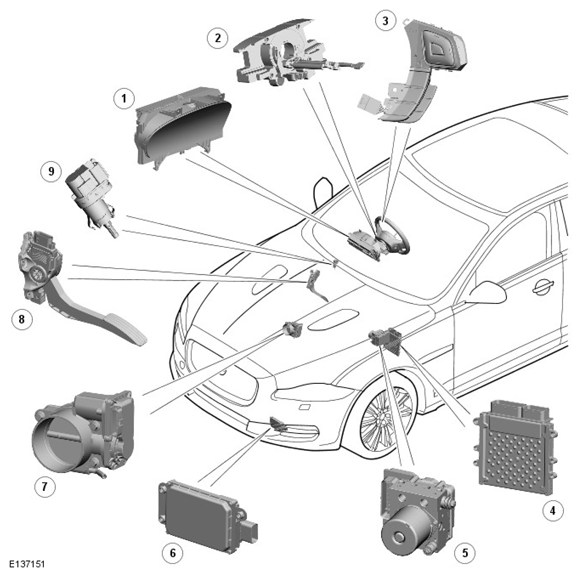

Component Location 5.0L V8
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Instrument cluster |
| 2 |
Clock spring |
| 3 |
Speed control switches |
| 4 |
ECM (engine control module) |
| 5 |
ABS (anti-lock brake system) module |
| 6 |
Adaptive speed control radar sensor |
| 7 |
Electric throttle actuator |
| 8 |
APP (accelerator pedal position) sensor |
| 9 |
Brake lamp/brake test switch |
