Adaptive Speed Control Module: Notes
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

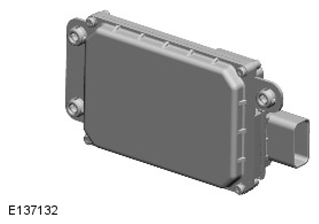

The adaptive speed control module is located in the front bumper, on the left side behind the bumper cover. If the module is replaced in service, the module must be re-aligned vertically. Horizontal alignment is achieved by putting the module in service mode using an approved Jaguar diagnostic system.
The vehicle is then driven for a short period while the module calibrates itself. Calibration is complete when the 'follow' icon in the instrument cluster stops flashing.
