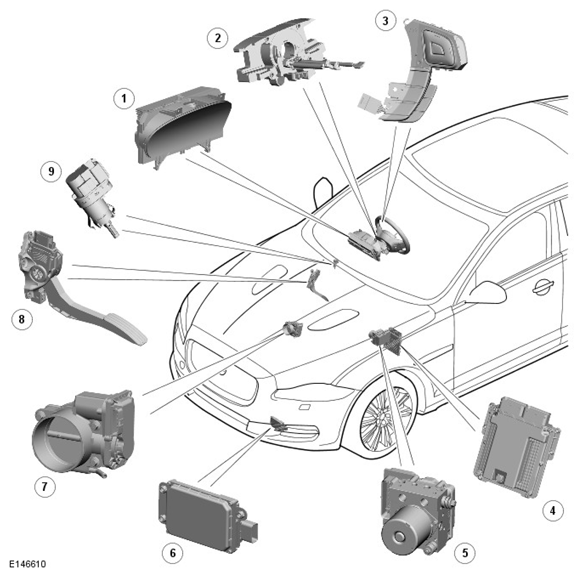

Component Location V6 3.0L S/C Petrol
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Instrument cluster |
| 2 |
Clockspring |
| 3 |
Right steering wheel switchpack |
| 4 |
Engine Control Module (ECM) |
| 5 |
Anti-lock Brake System (ABS) control module |
| 6 |
Adaptive speed control module |
| 7 |
Electric throttle |
| 8 |
Accelerator Pedal Position (APP) sensor |
| 9 |
Brake pedal switch |
