Transmission Fluid Cooler Tubes - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (G1089469): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Transmission Fluid Drain and Refill (Automatic Transmission/Transaxle - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol, RWD, General Procedures).
  3. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

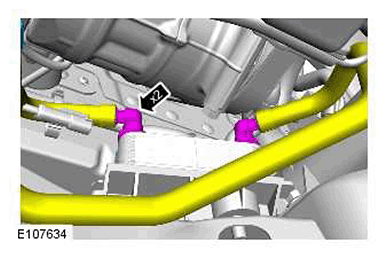

    G11417752

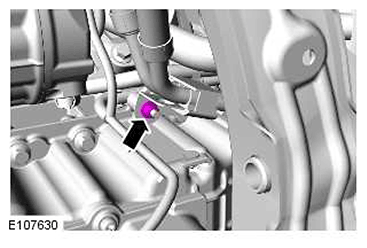

  4. G11417753

    Torque Specification: 11 Nm

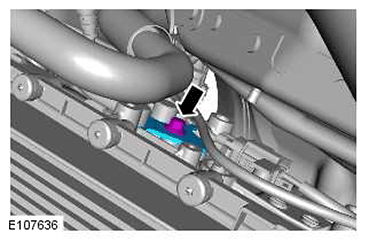

  5. G11417754

    Torque Specification: 23 Nm

  6. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

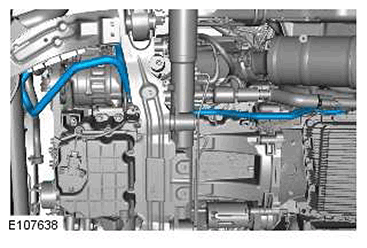

    G11417755
