Transmission Fluid Cooler - V8 S/C 5.0L Petrol (G1574187): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Transmission Fluid Drain and Refill (Automatic Transmission/Transaxle - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol, RWD, General Procedures).
Refer to: Cooling System Partial Draining and Vacuum Filling (General Procedures).
Refer to: Cooling System Partial Draining and Vacuum Filling (General Procedures).

Refer to: Cooling System Partial Draining and Vacuum Filling (Engine Cooling - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).

Refer to: Cooling System Partial Draining and Vacuum Filling (Engine Cooling - V6 S/C 3.0L Petrol, General Procedures).

Refer to: Cooling System Partial Draining and Vacuum Filling (Engine Cooling - GTDi 2.0L Petrol, General Procedures).

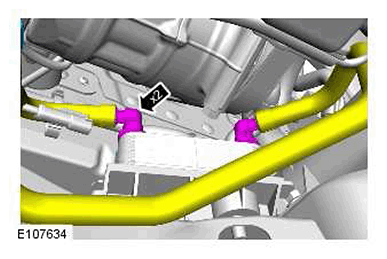

CAUTION:
- Be prepared to collect escaping fluids.
- Make sure that all openings are sealed. Use new blanking caps.

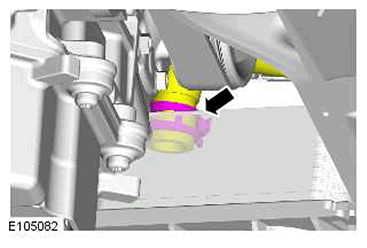

CAUTION: Be prepared to collect escaping coolant.

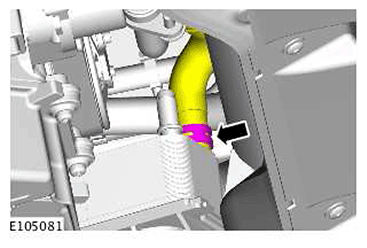

CAUTION: Be prepared to collect escaping coolant.
CAUTION: Be prepared to collect escaping fluids.

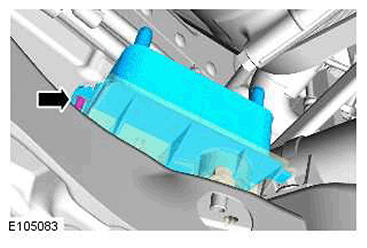

Torque Specification: 5 Nm
