Transmission Fluid Cooler - GTDI 2.0L Petrol (G1574186): Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Transmission Fluid Drain and Refill (Automatic Transmission/Transaxle - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol, RWD, General Procedures).
- Refer to: Cooling System Partial Draining, Filling and Bleeding (Engine Cooling - GTDi 2.0L Petrol, General Procedures).
-

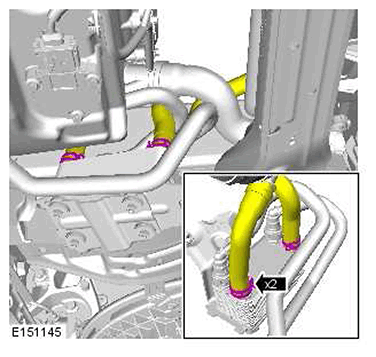

CAUTION: Be prepared to collect escaping fluids.
-

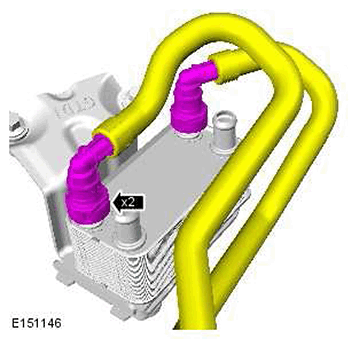

CAUTION: Be prepared to collect escaping fluids.
-

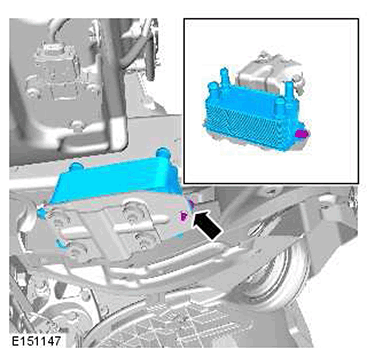

CAUTION: Be prepared to collect escaping fluids.
Torque Specification: 5 Nm
