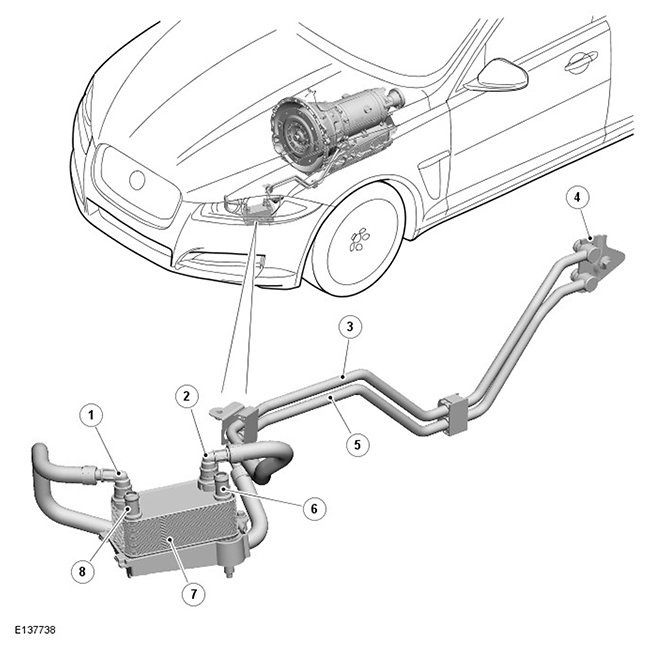

Component Location - 5.0L V8 NA/SC Petrol
WARNING: This page is about a different variant/trim than selected.
| ITEM |
DESCRIPTION |
| 1 |
Supply pipe connection |
| 2 |
Return pipe connection |
| 3 |
Return pipe (to transmission) |
| 4 |
Latch-plate |
| 5 |
Supply pipe (from transmission) |
| 6 |
Engine coolant hose connection |
| 7 |
Transmission cooler |
| 8 |
Engine coolant hose connection |
