Parking Brake Release Actuator (G1086729): Installation

  1. To install, reverse the removal procedure.

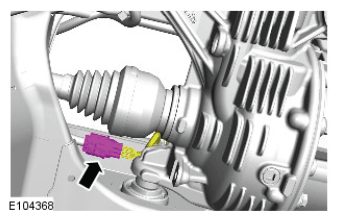

  2. CAUTION: Make sure the wiring harness is correctly routed to avoid contact with the halfshaft. Failure to follow this instruction may result in damage to the component.
    G11423688
  3. CAUTION: Calibrate the electric park brake using Jaguar approved diagnostic system. If the Jaguar approved diagnostic system is not available disconnect the battery for approximately 30 seconds, the vehicle will then prompt the driver to carry out the calibration procedure as per the vehicle hand book on re-connection.

    Calibrate the electric parking brake (EPB) using the diagnostic tool.
