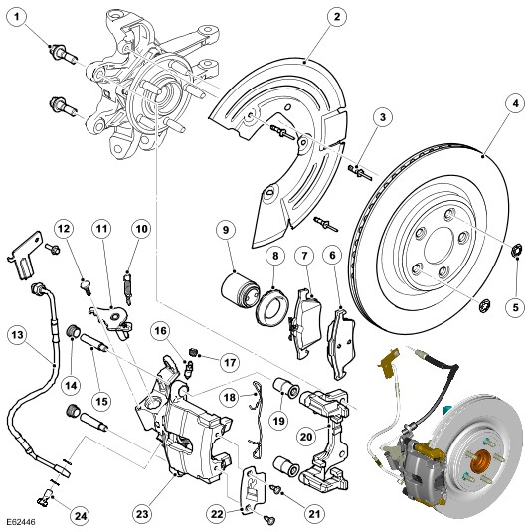

Component Location
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | Caliper carrier bolts (2 off) | |
| 2 | Brake dust shield | |
| 3 | Rivets (3 off) | |
| 4 | Brake disc | |
| 5 | Retaining washers (2 off) | |
| 6 | Outboard brake pad | |
| 7 | Inboard brake pad | |
| 8 | Piston dust cover | |
| 9 | Piston | |
| 10 | Parking brake return spring | |
| 11 | Parking brake lever | |
| 12 | Parking brake lever stop | |
| 13 | Brake hose | |
| 14 | Guide pin dust cover (2 off) | |
| 15 | Guide pins (2 off) | |
| 16 | Bleed screw | |
| 17 | Bleed screw dust cap | |
| 18 | Anti-rattle spring | |
| 19 | Guide pin bush (2 off) | |
| 20 | Caliper carrier | |
| 21 | Screw (2 off) - (supercharged model) | |
| 22 | 'R' type logo badge (supercharged model) | |
| 23 | Brake caliper housing | |
| 24 | Bolt - brake hose to caliper |
