Suspension Height Sensor (60.32.05): Installation

To install, reverse the removal procedure.
- Tighten to 20 N.m.

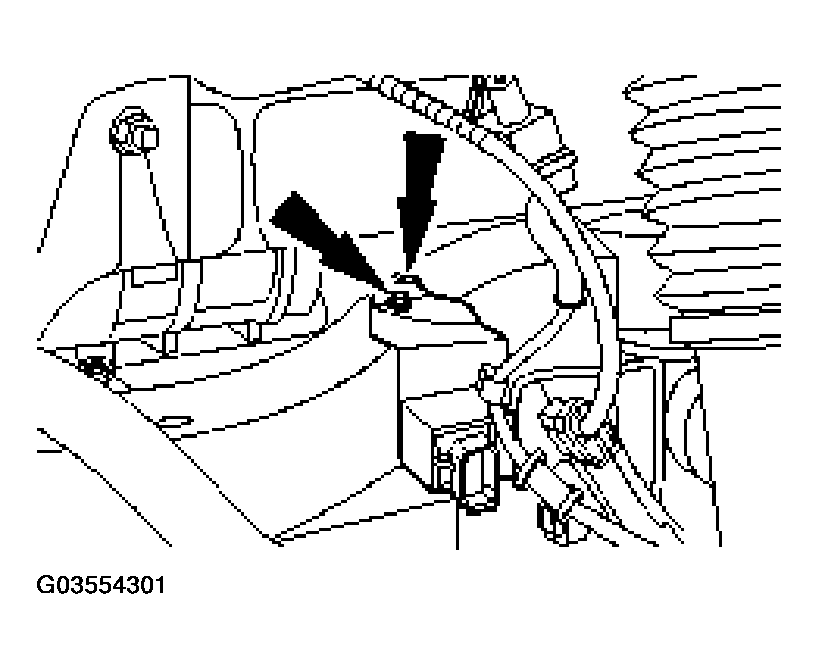

  Fig 1: Tightening Retaining Bolts
  Courtesy of JAGUAR CARS, INC.

NOTE: To aid installation of the electrical connector, apply a small amount of silicone based oil or grease to the connector seal.

NOTE: Make sure the electrical connector latch is fully secured to the sensor.

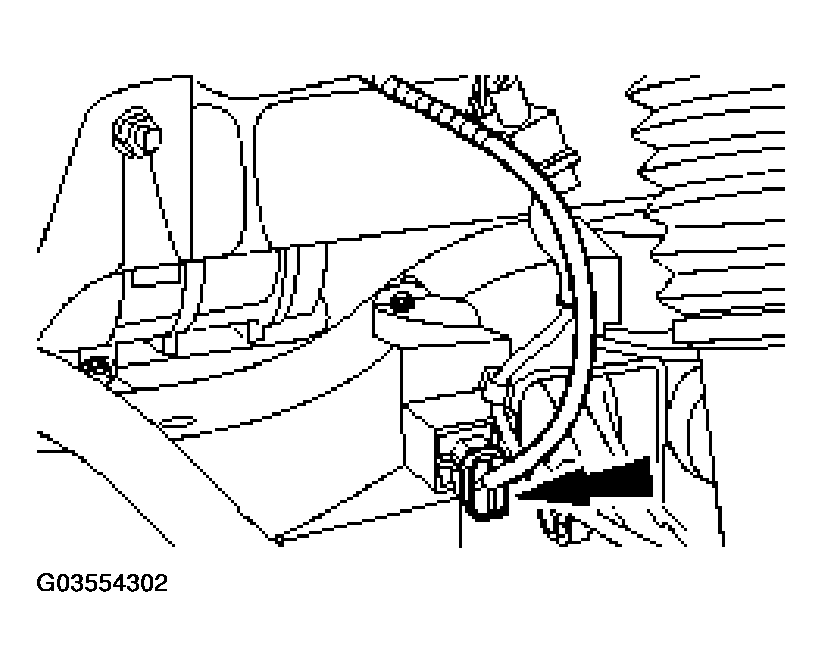

Fig 2: Connecting Front Air Suspension Height Sensor Electrical Connector

Courtesy of JAGUAR CARS, INC.

Connect the front air suspension height sensor electrical connector.
Re-calibrate the suspension height sensor using the Jaguar approved diagnostic system. For additional information, refer to RIDE HEIGHT ADJUSTMENTS .
