Rear Air Spring - VIN Range: G00442->G45703 (60.32.10): Removal

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  2. Remove the luggage compartment floor covering.
    1. Remove the luggage compartment floor covering securing screws.
    2. Remove the luggage compartment floor covering.

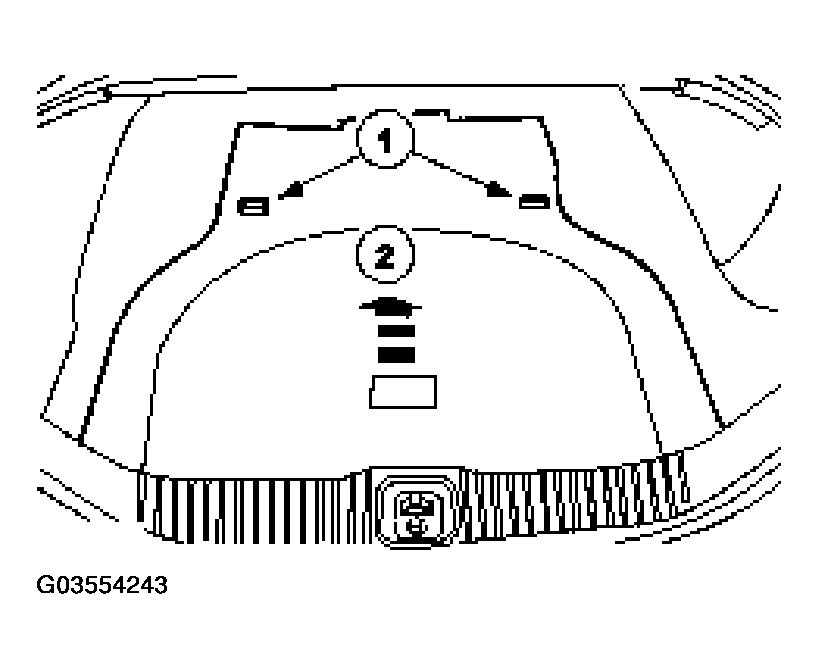

      Fig 1: Removing Luggage Compartment Floor Covering
      G03554243Courtesy of JAGUAR CARS, INC.
    3. NOTE: Left-hand shown, right-hand similar.

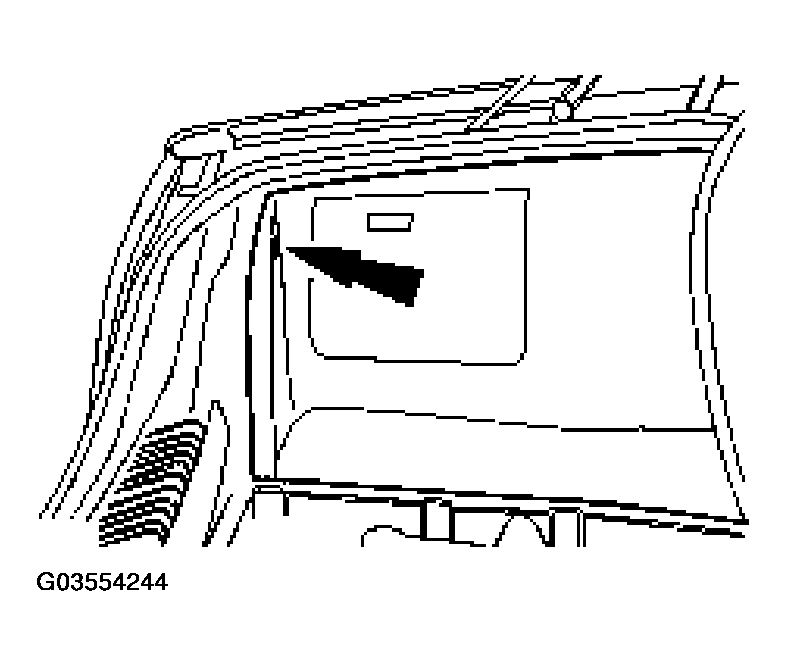

    Fig 2: Removing Luggage Compartment Side Trim Panel
    G03554244Courtesy of JAGUAR CARS, INC.
  3. Remove the luggage compartment side trim panel.
    4. NOTE: Left-hand shown, right-hand similar.

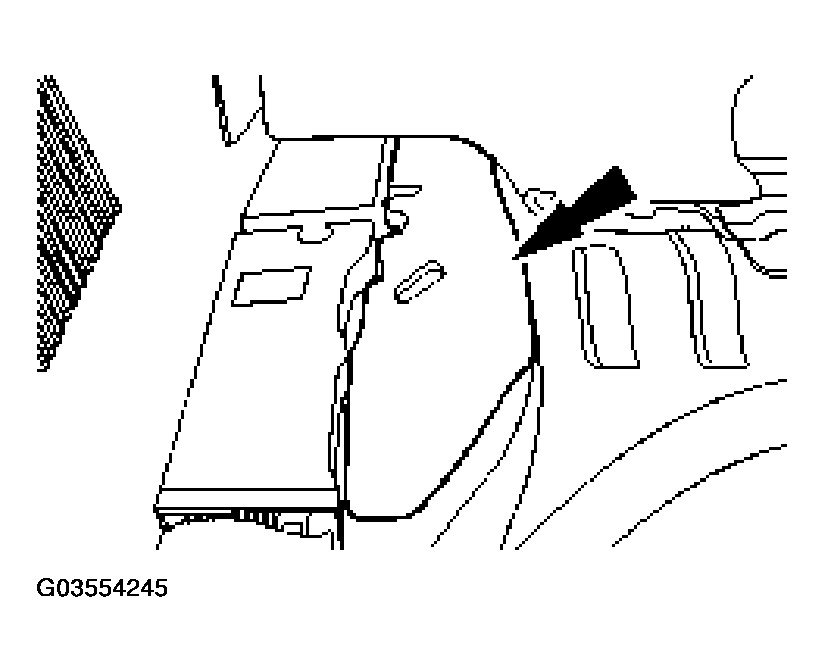

    Fig 3: Removing Air Spring Trim Panel
    G03554245Courtesy of JAGUAR CARS, INC.
  4. Remove the air spring trim panel.
    5. NOTE: Left-hand shown, right-hand similar.

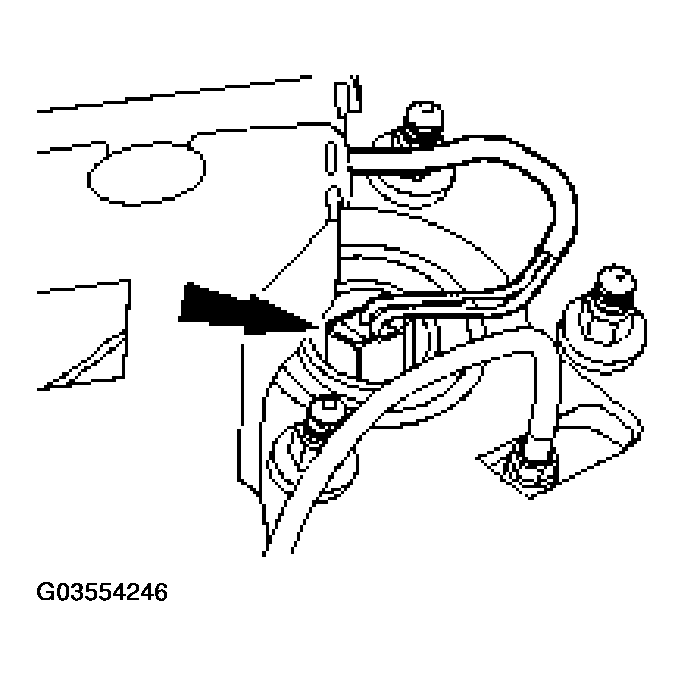

    Fig 4: Disconnecting Air Spring Electrical Connector
    G03554246Courtesy of JAGUAR CARS, INC.
  5. Disconnect the air spring electrical connector.
    6. NOTE: Left-hand shown, right-hand similar.
    Fig 5: Disconnecting Air Spring Electrical Connector
    G00486644Courtesy of JAGUAR CARS, INC.
  6. Disconnect the air spring electrical connector.
    7. NOTE: Left-hand shown, right-hand similar.

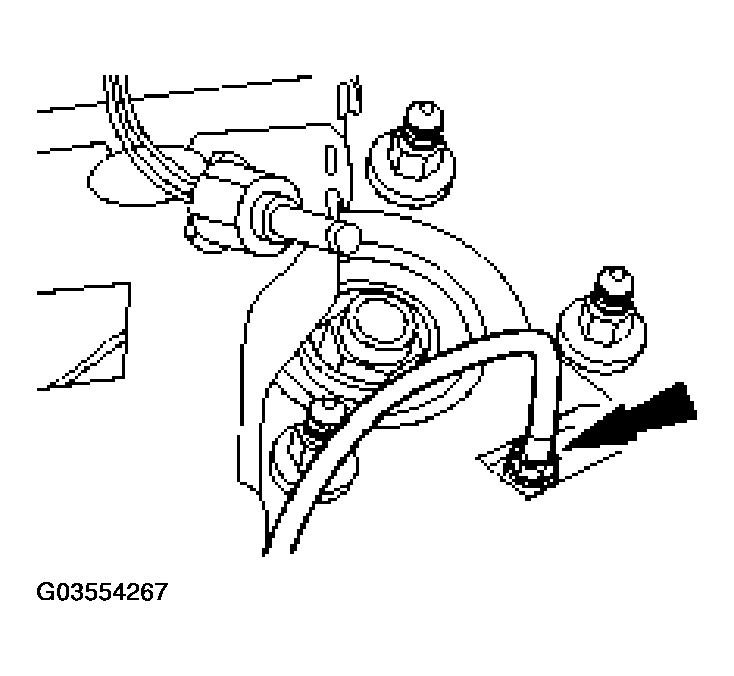

    Fig 6: Disconnecting Air Pipe
    G03554267Courtesy of JAGUAR CARS, INC.
  7. Detach the air pipe.
    8. NOTE: Left-hand shown, right-hand similar.

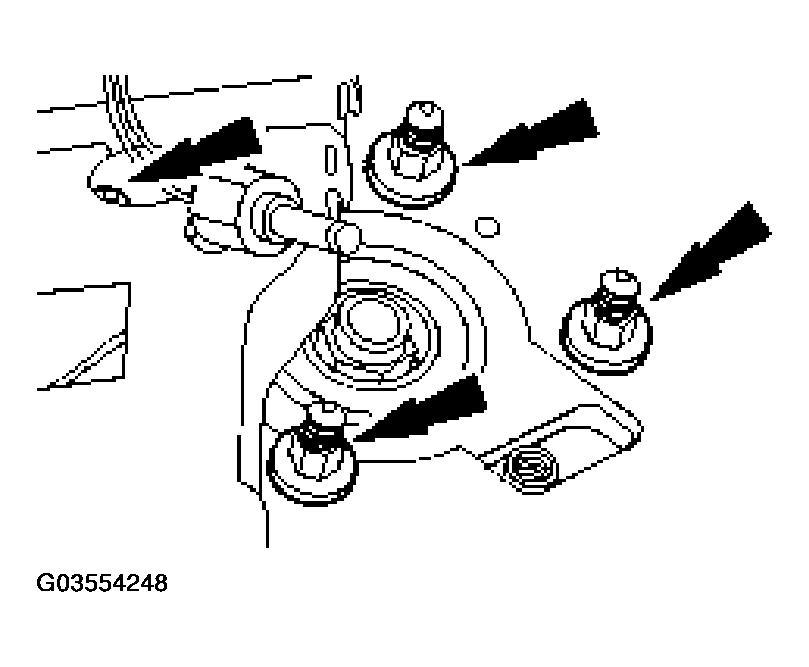

    Fig 7: Removing Air Spring Retaining Nuts
    G03554248Courtesy of JAGUAR CARS, INC.
  8. Remove the air spring retaining nuts.
  9. Remove the rear wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
    10. NOTE: Left-hand shown, right-hand similar.

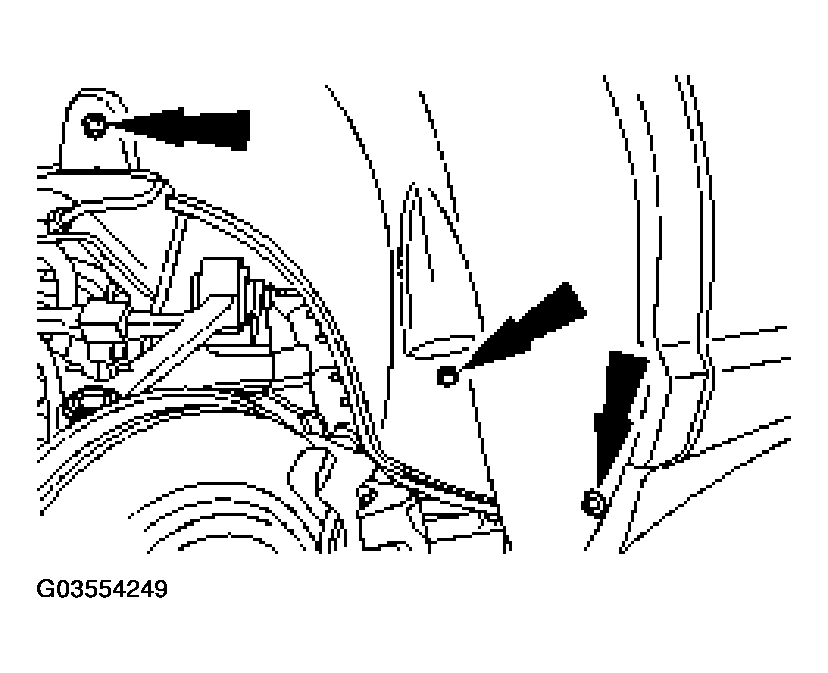

    Fig 8: Disconnecting Rear Fender Splash Shield
    G03554249Courtesy of JAGUAR CARS, INC.
  10. Detach the rear fender splash shield.
    11. NOTE: Left-hand shown, right-hand similar.

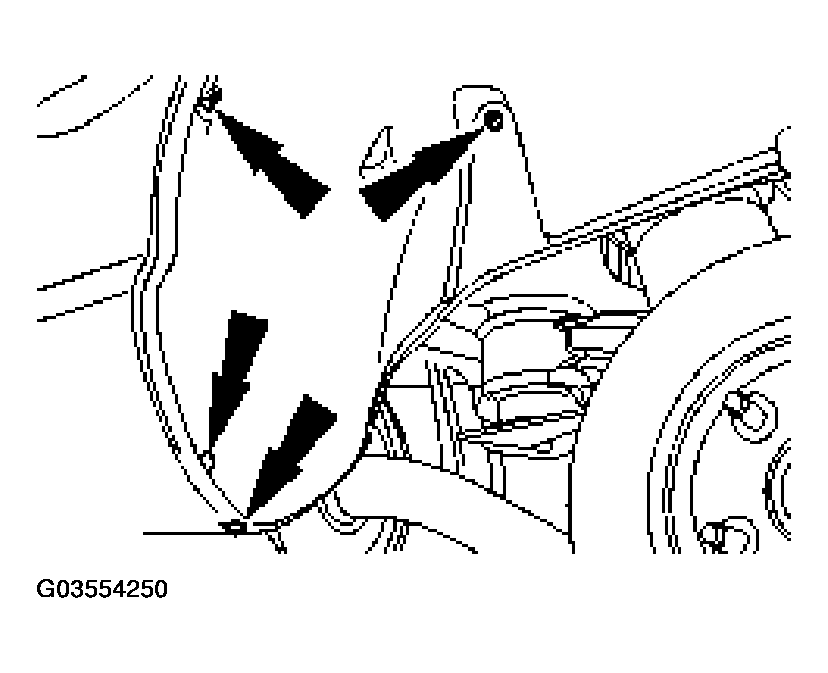

    Fig 9: Removing Rear Fender Splash Shield
    G03554250Courtesy of JAGUAR CARS, INC.
  11. Remove the rear fender splash shield.
    12. NOTE: Left-hand shown, right-hand similar.

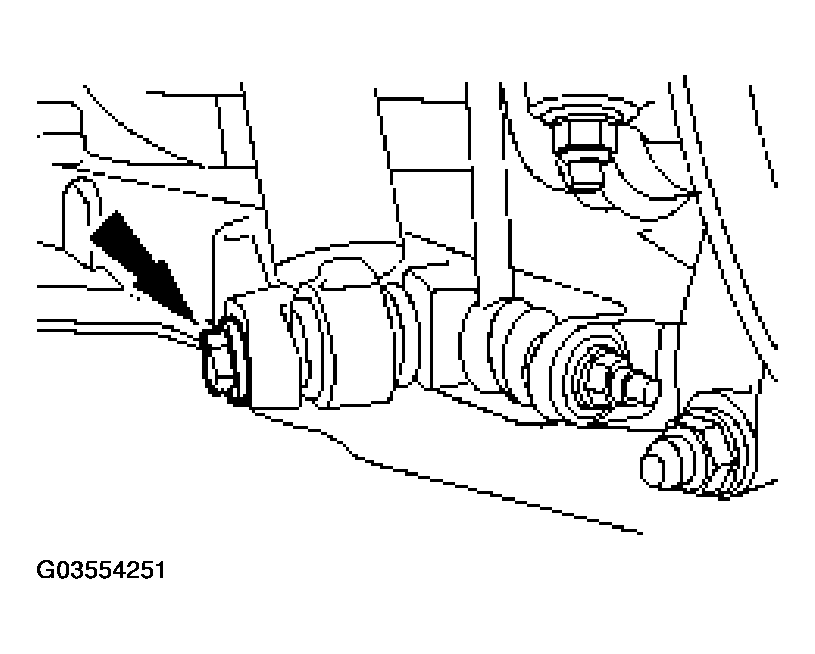

    Fig 10: Removing Air Spring Bolt
    G03554251Courtesy of JAGUAR CARS, INC.
  12. Remove the air spring bolt.
    13. NOTE: Left-hand shown, right-hand similar.
  13. Remove the air spring.
    1. Displace the air spring lower mounting from the lower arm.
    2. Displace the air spring from the upper mounting.
    3. Position the air spring to the outside of the lower arm.
    4. Remove the air spring.

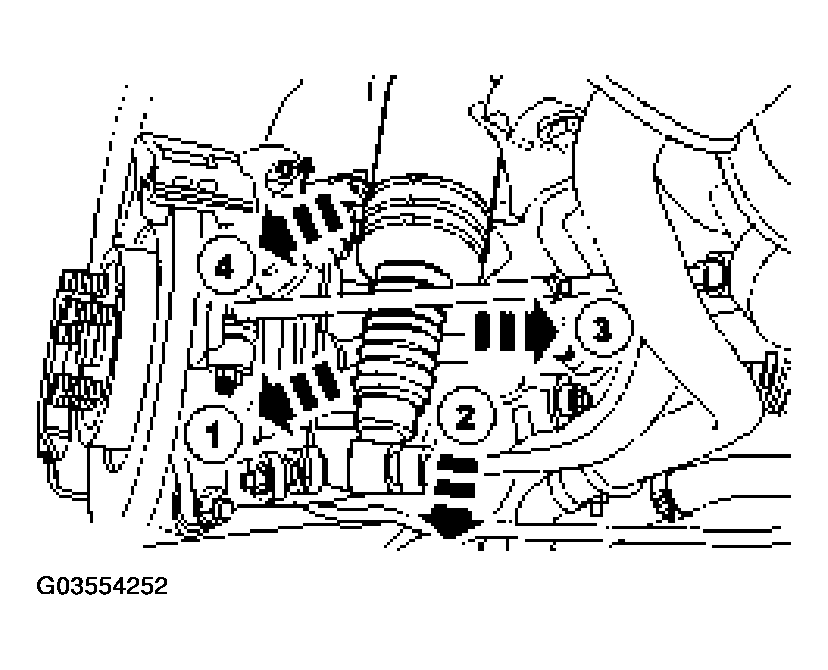

      Fig 11: Removing Air Spring
      G03554252Courtesy of JAGUAR CARS, INC.
