Air Suspension Reservoir: Removal

  1. Using the Jaguar approved diagnostic system depressurize the air suspension system.
  2. Disconnect the battery ground cable. Refer to BATTERY DISCONNECT .
  3. Remove the luggage compartment floor covering.
    1. Remove the luggage compartment floor covering securing screws.
    2. Remove the luggage compartment floor covering.

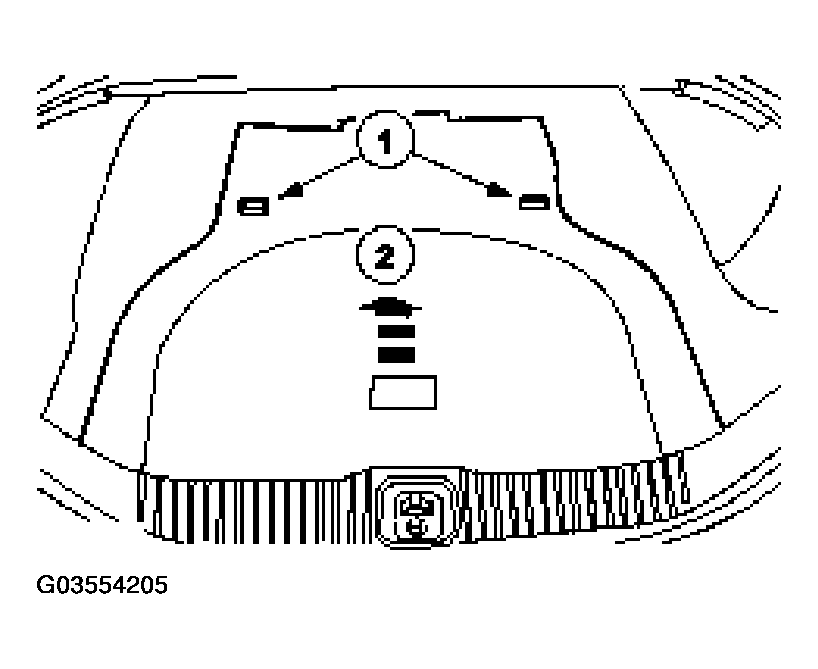

      Fig 1: Removing Luggage Compartment Floor Covering
      G03554205Courtesy of JAGUAR CARS, INC.
    4. CAUTION: Before the spare wheel retainer is removed the lower locking nut should be loosened.

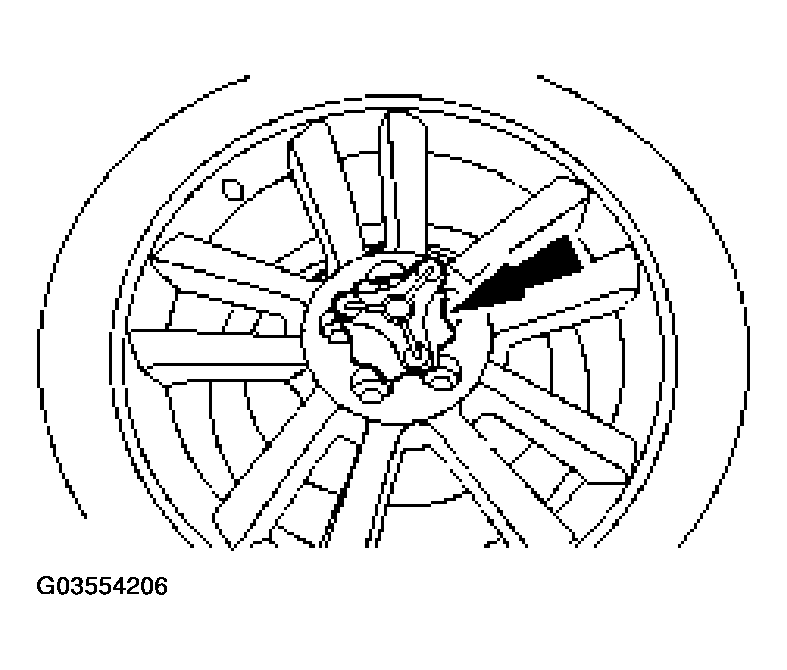

    Fig 2: Removing Spare Wheel
    G03554206Courtesy of JAGUAR CARS, INC.
  4. Remove the spare wheel.
  5. Remove the reservoir insulator.

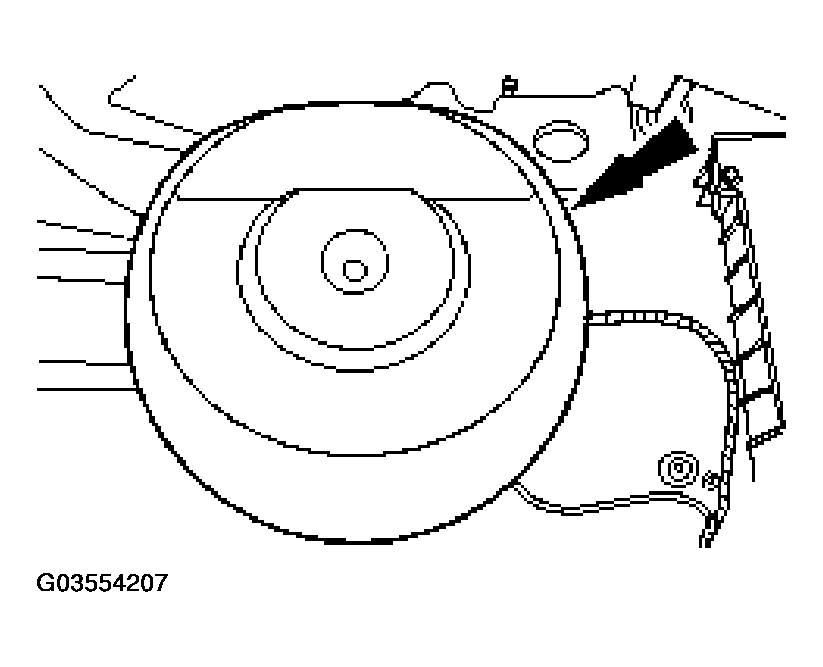

    Fig 3: Removing Reservoir Insulator
    G03554207Courtesy of JAGUAR CARS, INC.
  6. Disconnect the electrical connector.

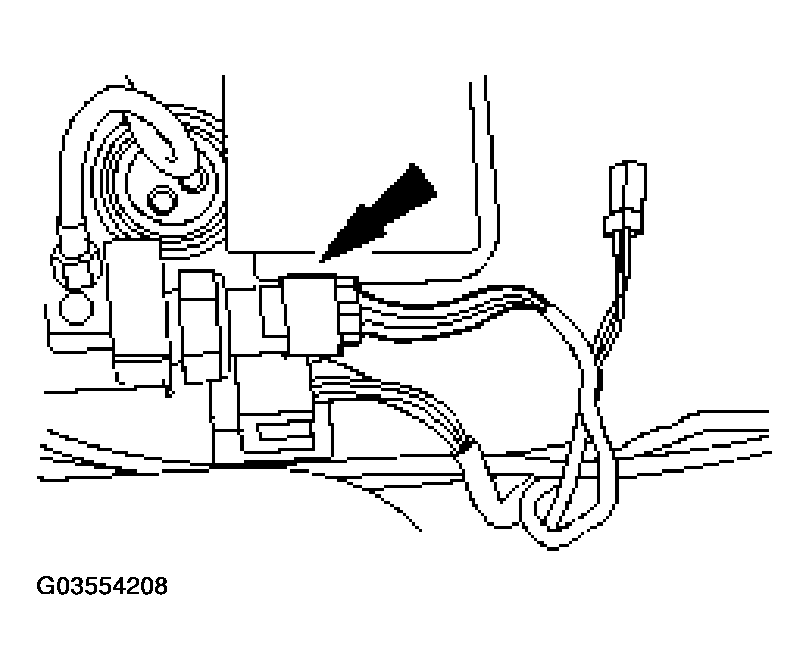

    Fig 4: Disconnecting Electrical Connector
    G03554208Courtesy of JAGUAR CARS, INC.
  7. Disconnect the electrical connector.

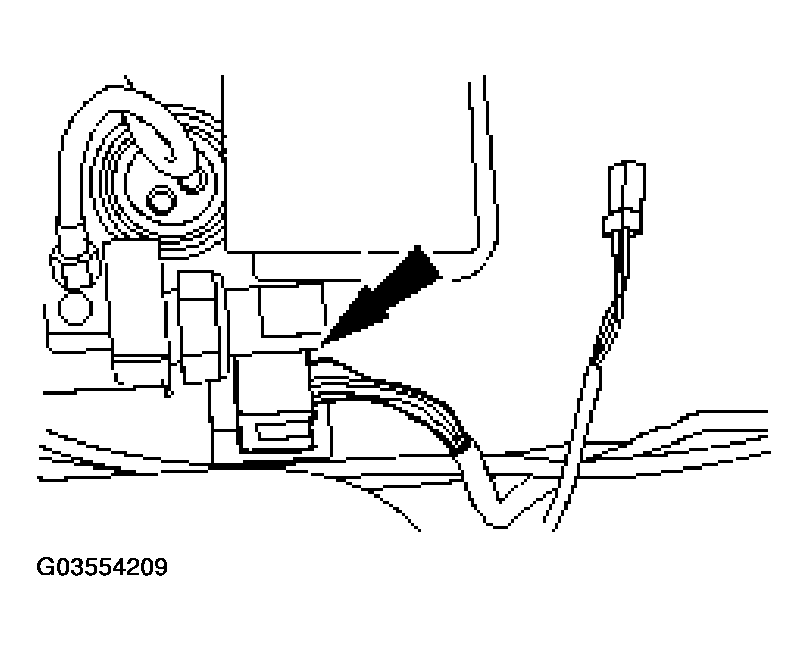

    Fig 5: Disconnecting Electrical Connector
    G03554209Courtesy of JAGUAR CARS, INC.
    8. WARNING: Loosen the pipes no more than one full turn to allow the stored air pressure to vent for a minimum of three seconds.
  8. Remove the air pipes.
    1. Detach the blue air pipe.
    2. Detach the white air pipe.
    3. Detach the yellow air pipe.
    4. Detach the red air pipe.
    5. Detach the brown air pipe.

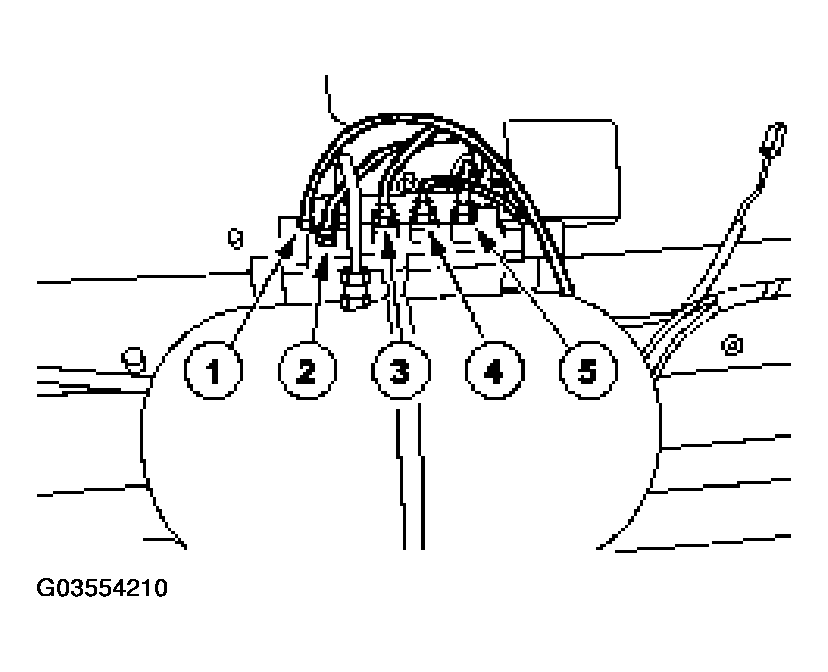

      Fig 6: Removing Air Pipes
      G03554210Courtesy of JAGUAR CARS, INC.
  9. Remove the reservoir.

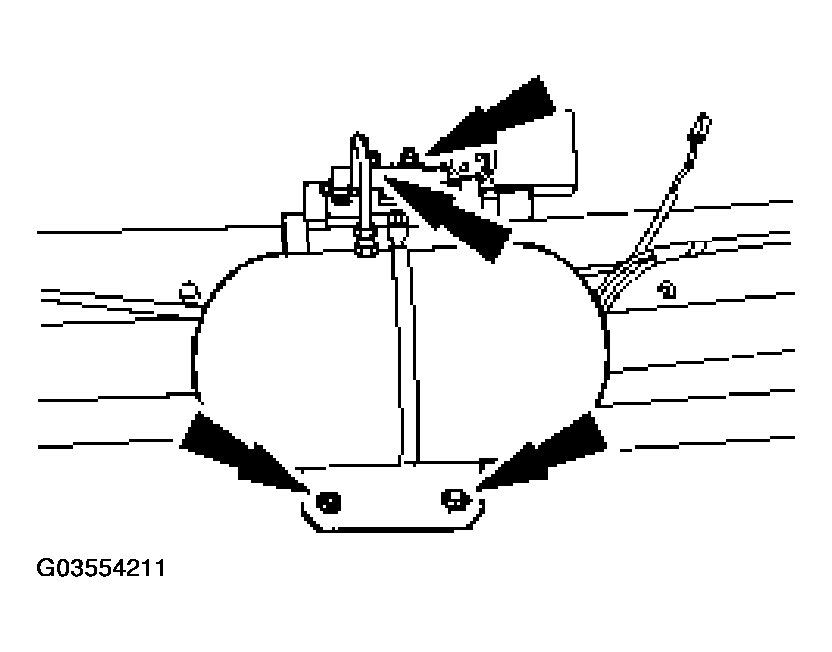

    Fig 7: Removing Reservoir
    G03554211Courtesy of JAGUAR CARS, INC.
    10. WARNING: Loosen the pipe no more than one full turn to allow the stored air pressure to vent for a minimum of one minute.

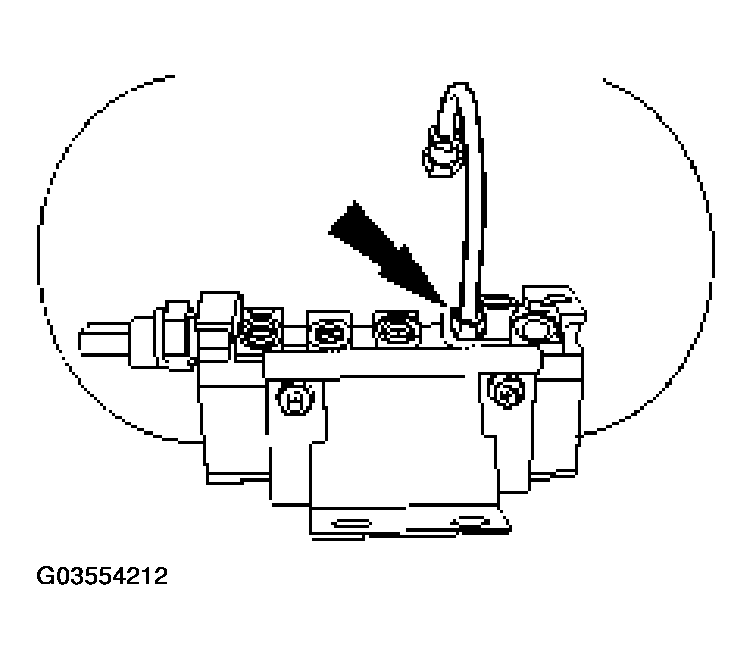

    Fig 8: Disconnecting Pink Air Pipe
    G03554212Courtesy of JAGUAR CARS, INC.
  10. Detach the pink air pipe.
  11. Remove the securing nuts.

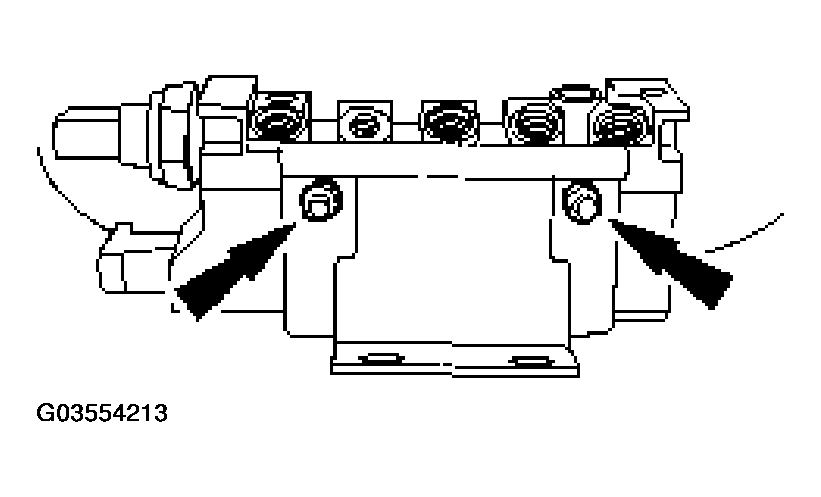

    Fig 9: Removing Securing Nuts
    G03554213Courtesy of JAGUAR CARS, INC.
