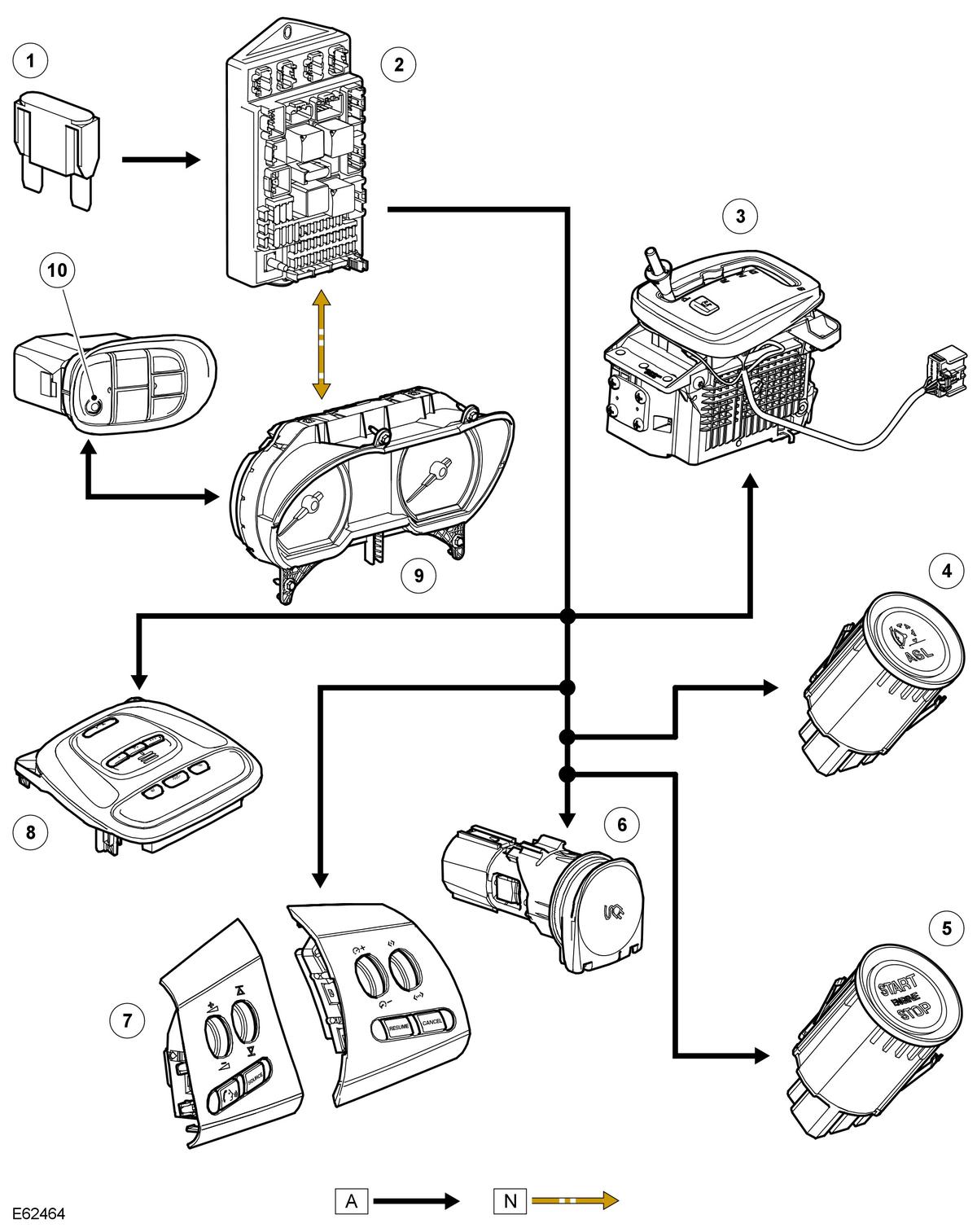

Control Diagram
Courtesy of JAGUAR CARS, INC.
| Item Number |
Description |
| 1 |
Mega fuse (175A) |
| 2 |
CJB |
| 3 |
Gear shift module |
| 4 |
Automatic speed limiter switch |
| 5 |
Start/stop switch |
| 6 |
Accessory power socket |
| 7 |
Steering column multifunction switches |
| 8 |
Overhead console |
| 9 |
Instrument cluster |
| 10 |
Illumination switch |
NOTE:
A
= Hardwired; N
= Medium speed CAN bus
