Component Location

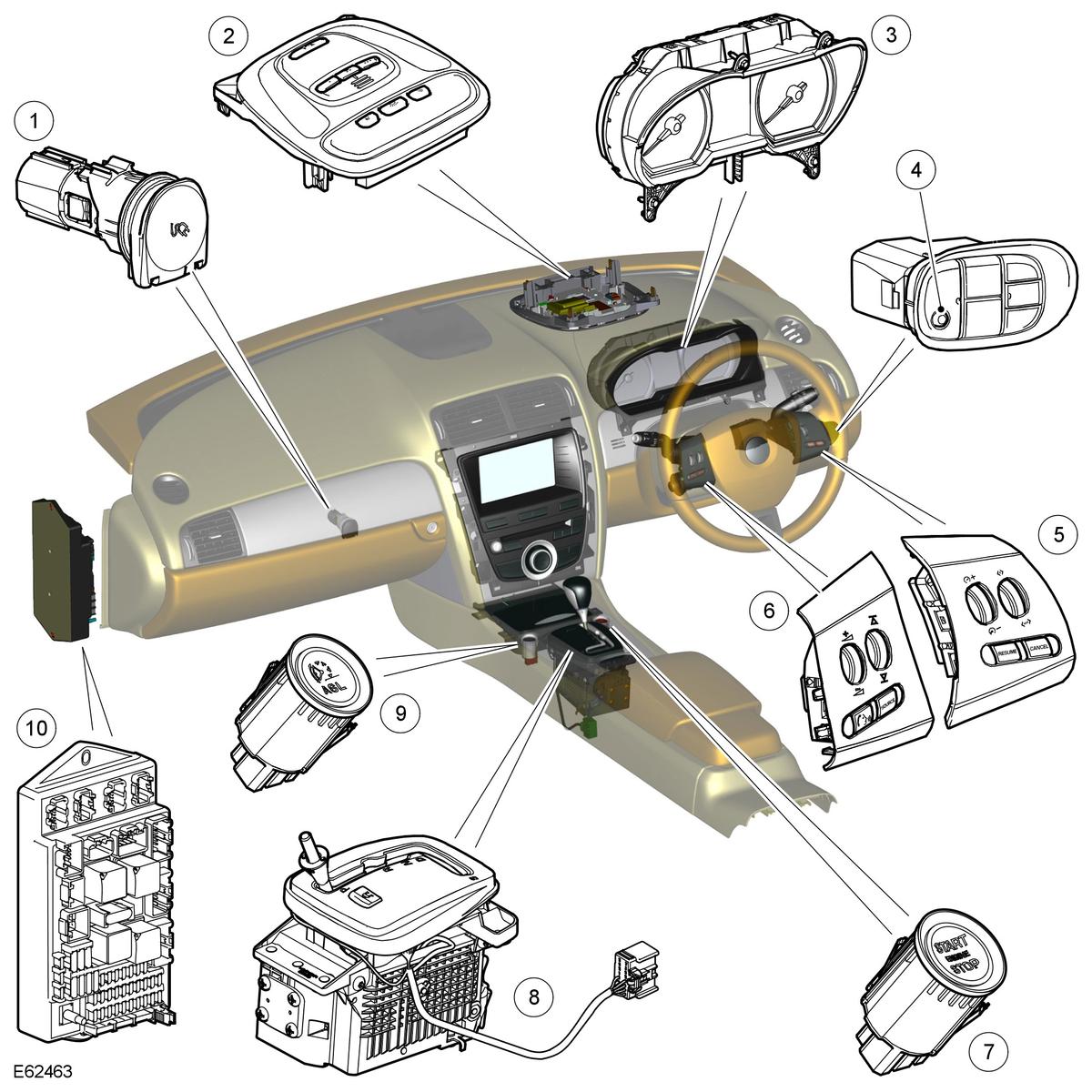

Fig 1: Instrument Cluster And Panel Illumination Component Location
GJ0009850Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Accessory power socket
2 Overhead console
3 Instrument cluster
4 Illumination switch
5 Right-Hand (RH) steering column multifunction switch
6 Left-Hand (LH) steering column multifunction switch
7 Start/stop switch
8 Gear shift module
9 Automatic speed limiter switch
10 Central Junction Box (CJB)
