Rear Suspension: Notes

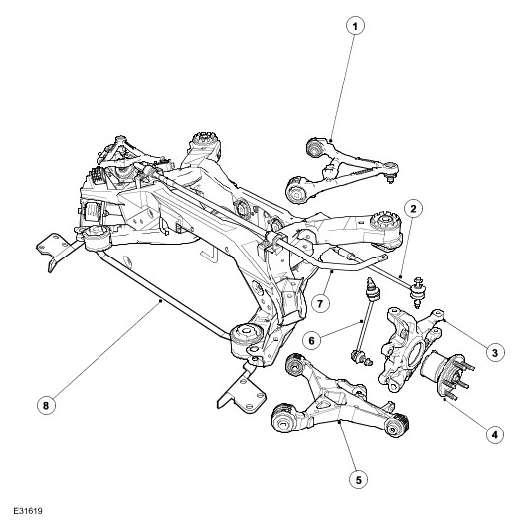

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Upper arm |
| 2 | - | Tie rod |
| 3 | - | Wheel knuckle |
| 4 | - | Wheel hub |
| 5 | - | Lower arm |
| 6 | - | Stabilizer bar drop link |
| 7 | - | Stabilizer bar |
| 8 | - | NVH brace |
The independent rear suspension features aluminium upper and lower control arms which carry the hub assemblies and air springs.
