Air Suspension Reservoir: Installation

To install, reverse the removal procedure.
1. Tighten to 5 N.m.

  Fig 1: Tightening Securing Nuts
  Courtesy of JAGUAR CARS, INC.
Tighten to 5 N.m.

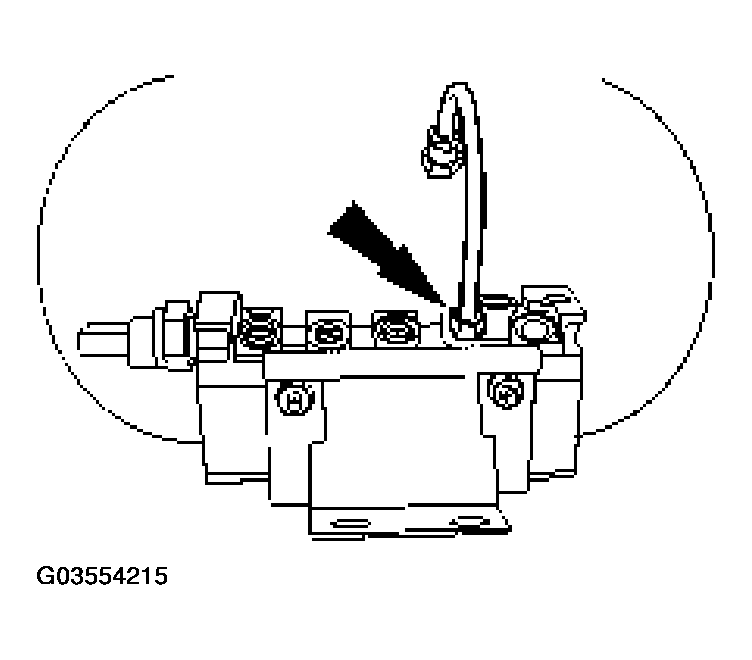

Fig 2: Tightening Pink Air Pipe
Courtesy of JAGUAR CARS, INC.
Tighten to 7 N.m.

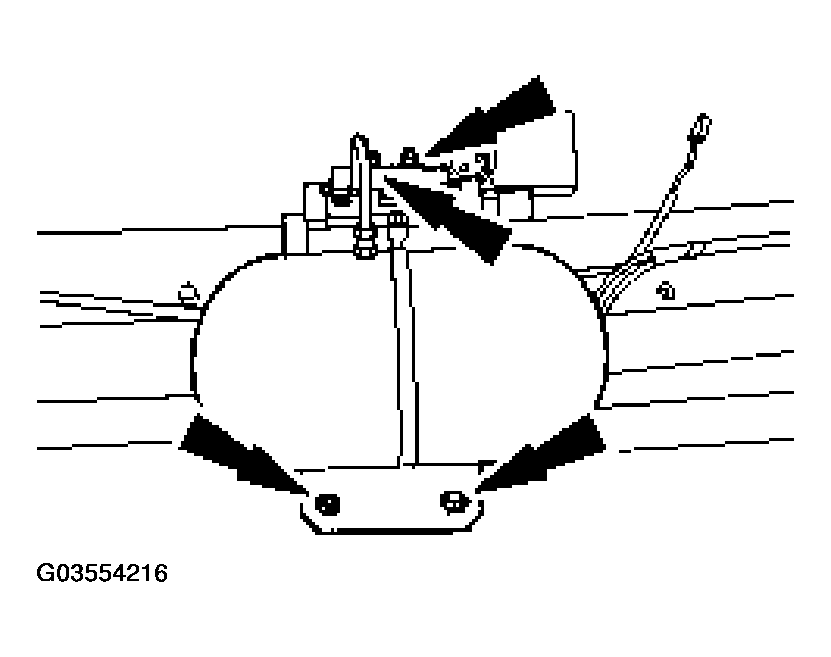

Fig 3: Tightening Reservoir
Courtesy of JAGUAR CARS, INC.
Tighten to 5 N.m.

Fig 4: Tightening Air Pipe
Courtesy of JAGUAR CARS, INC.
Connect the battery ground cable. Refer to BATTERY CONNECT .
Where required. Using the Jaguar approved diagnostic system pressurize the air suspension system.
Start and run the engine for 2 minutes to make sure the vehicle has leveled.
