Window Moulding: Removal

WARNING: This page is about a different car, the 2004 Jaguar XJR and 2004 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Right-hand shown, left-hand similar.

Detach the door margin seal to the waist of the door.
1. Remove the retaining peg.
2. Detach the door margin seal to the waist of the door.

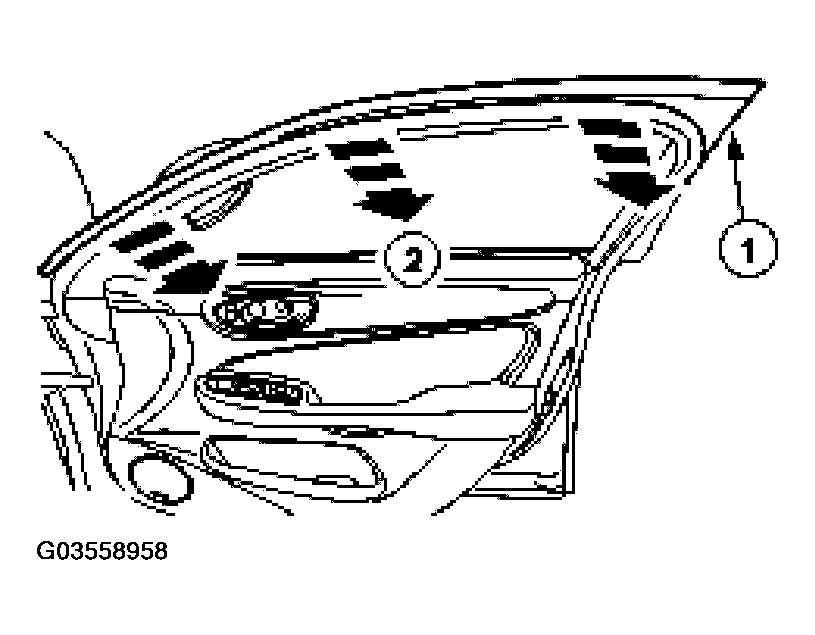

  Fig 1: Detaching Door Margin Seal To Waist Of Door
  Courtesy of JAGUAR CARS, INC.
Remove the front door trim panel. << INTERIOR TRIM AND ORNAMENTATION >>
Remove the rear view mirror. << REAR VIEW MIRRORS >>

NOTE: Right-hand shown, left-hand similar.

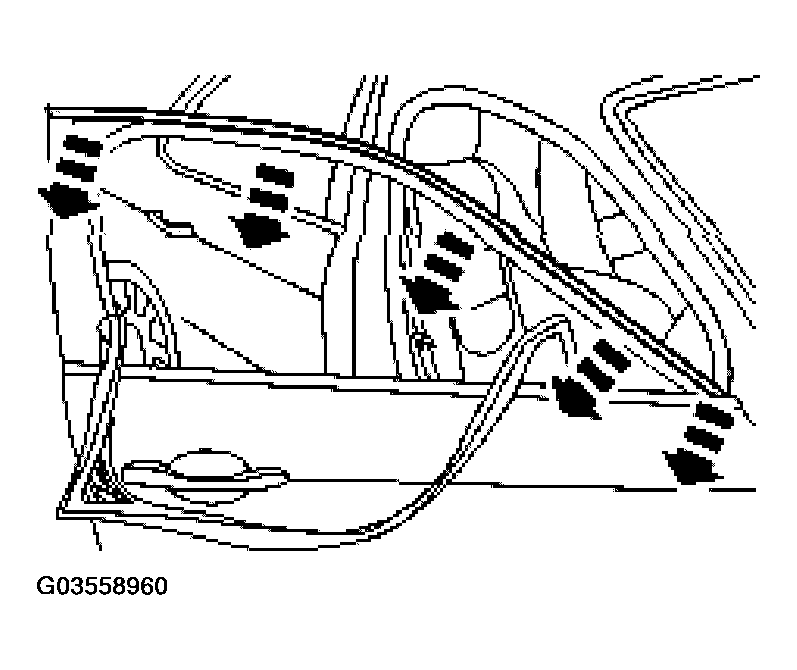

Fig 2: Detaching Front Door Glass Channeling

Courtesy of JAGUAR CARS, INC.

Detach the front door glass channeling.

NOTE: Right-hand shown, left-hand similar.

NOTE: Starting at the upper outer corner and using a suitable trim tool remove the door window moulding.

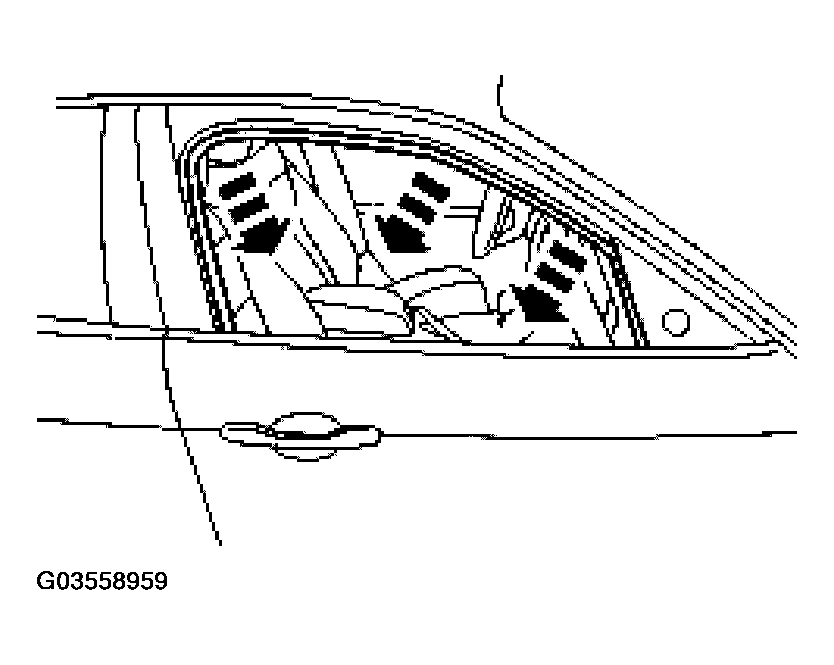

Fig 3: Removing Door Window Moulding

Courtesy of JAGUAR CARS, INC.

Remove the door window moulding.
