Long wheelbase

WARNING: This page is about a different car, the 2004 Jaguar XJR and 2004 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left-hand shown, right-hand similar.

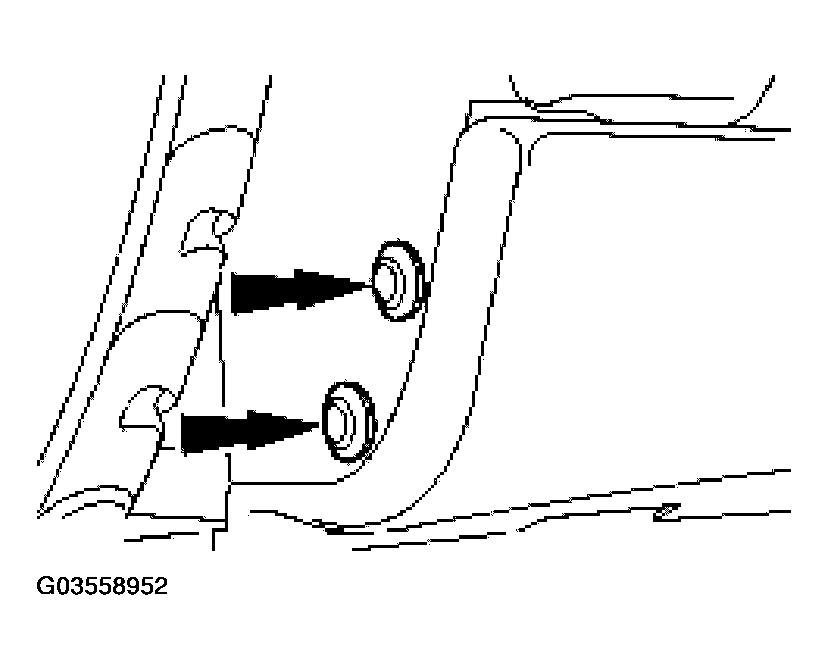

Fig 1: Removing Rocker Panel Moulding Front Retaining Clips

Courtesy of JAGUAR CARS, INC.

Remove the rocker panel moulding front retaining clips.

NOTE: Left-hand shown, right-hand similar.

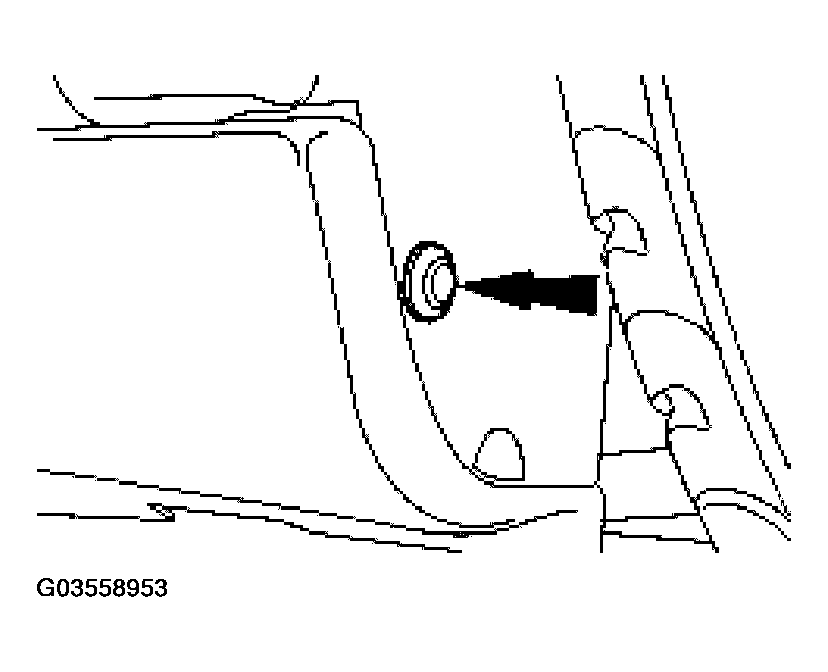

Fig 2: Removing Rocker Panel Moulding Rear Retaining Clip

Courtesy of JAGUAR CARS, INC.

Remove the rocker panel moulding rear retaining clip.

NOTE: Left-hand shown, right-hand similar.

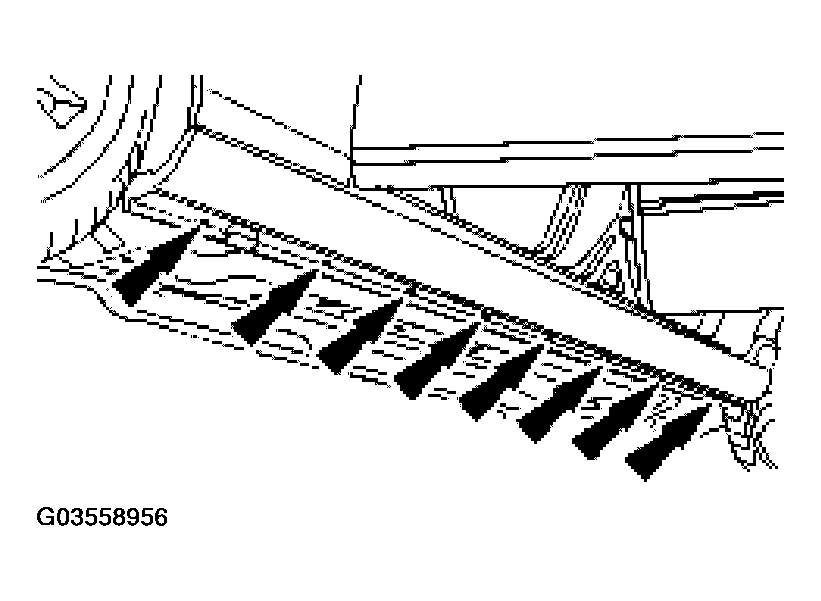

Fig 1: Removing Rocker Panel Moulding Lower Retaining Fixings

Courtesy of JAGUAR CARS, INC.

Remove the rocker panel moulding lower retaining fixings.

NOTE: Left-hand shown, right-hand similar.

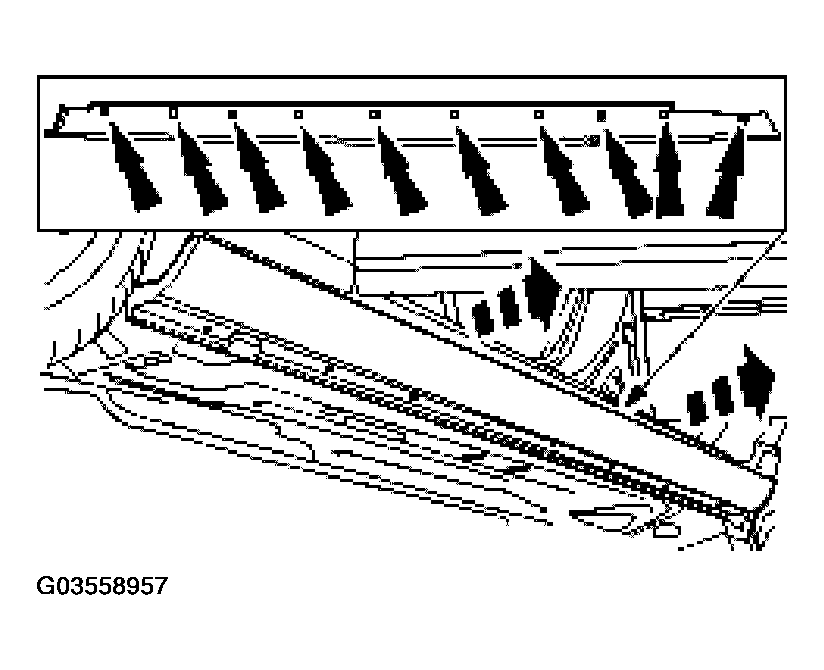

Fig 2: Removing Rocker Panel Moulding

Courtesy of JAGUAR CARS, INC.

Remove the rocker panel moulding.
