Radiator Grille: Removal

WARNING: This page is about a different car, the 2004 Jaguar XJR and 2004 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator grille retaining bolts.

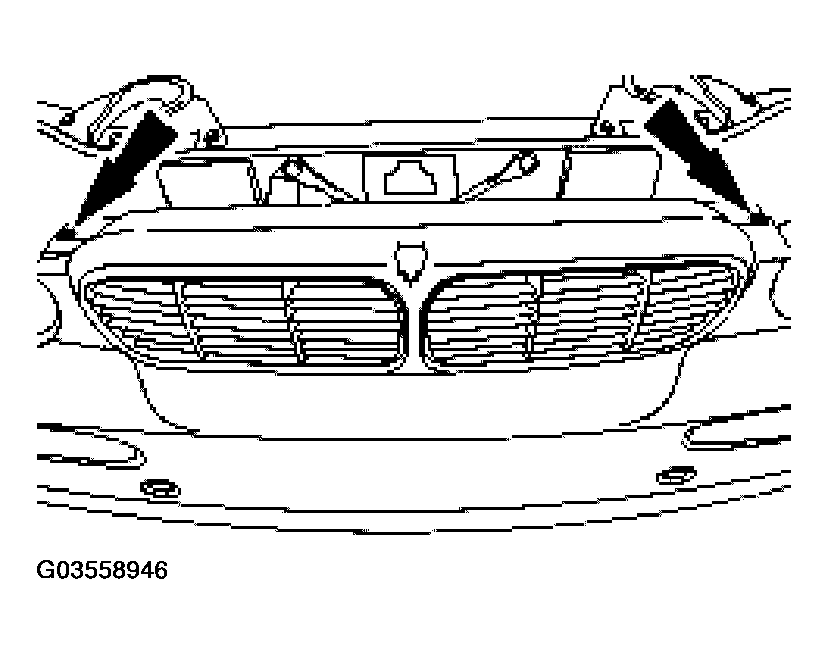

Fig 1: Removing Radiator Grille Retaining Bolts
Courtesy of JAGUAR CARS, INC.

NOTE: Left-hand shown, right-hand similar.

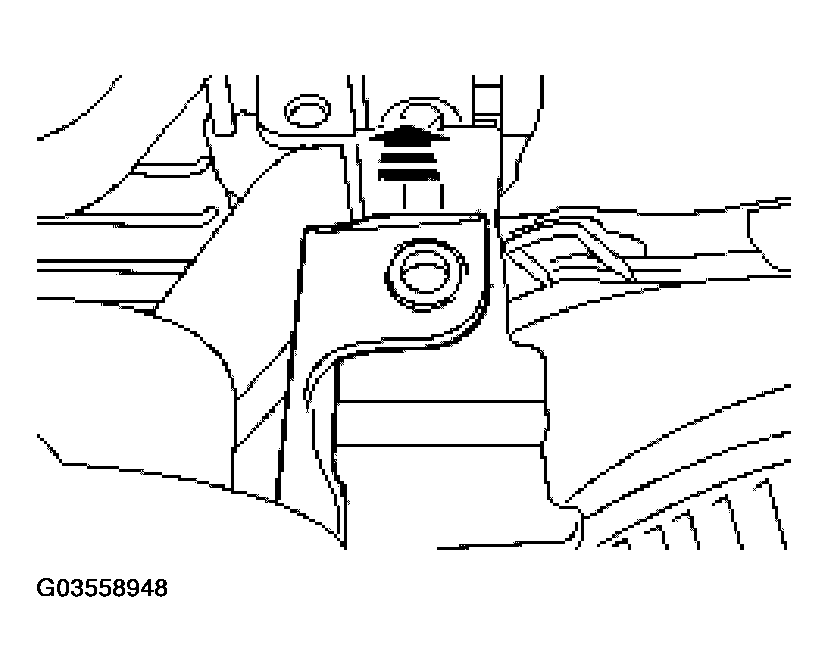

Fig 2: Removing Air Deflector

Courtesy of JAGUAR CARS, INC.

Remove the air deflector.

NOTE: Left-hand shown, right-hand similar.

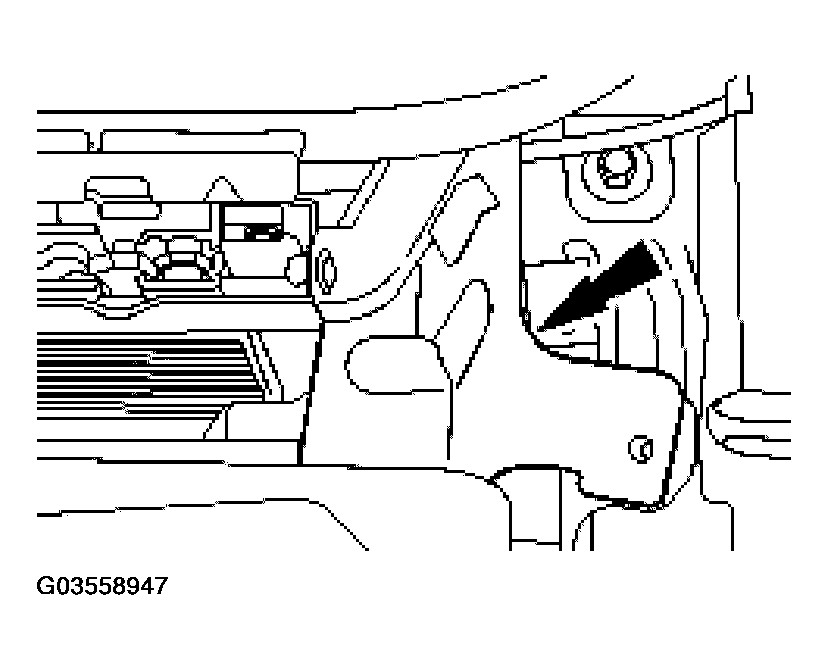

Fig 3: Detaching Radiator Grille

Courtesy of JAGUAR CARS, INC.

Detach the radiator grille.
Remove the radiator grille.

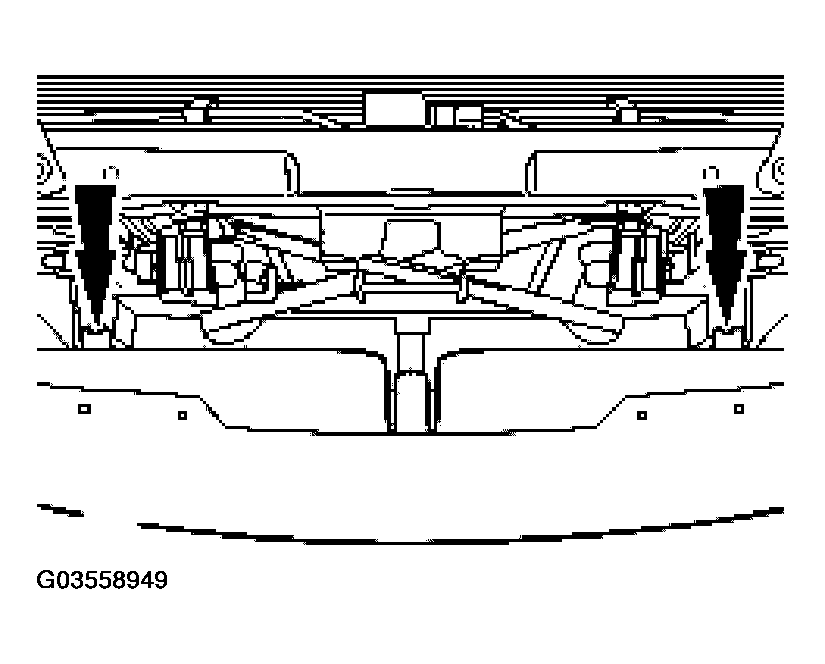

Fig 4: Removing Radiator Grille
Courtesy of JAGUAR CARS, INC.
