Luggage Compartment Lid Moulding - VIN Range: G00442->H18679: Removal

WARNING: This page is about a different car, the 2004 Jaguar XJR and 2004 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the warning triangle.
Remove the luggage compartment lid grab handles.

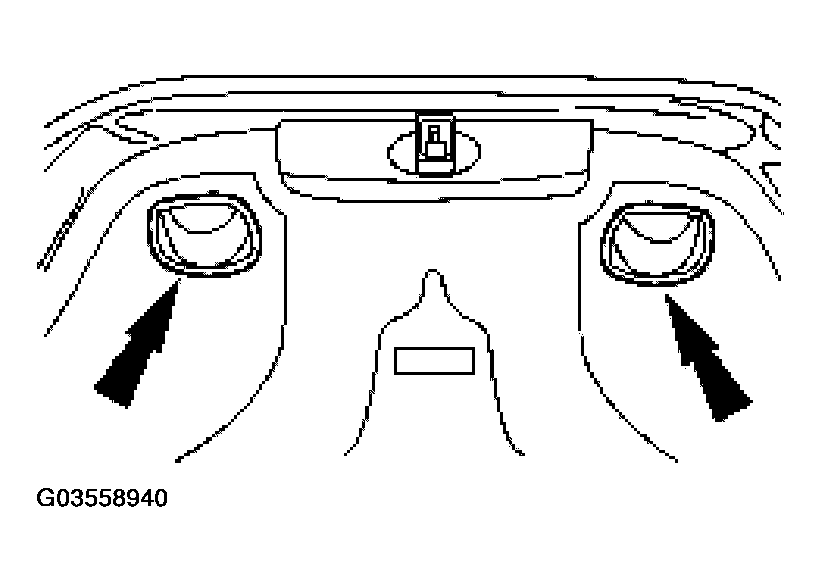

Fig 1: Removing Luggage Compartment Lid Grab Handles
Courtesy of JAGUAR CARS, INC.

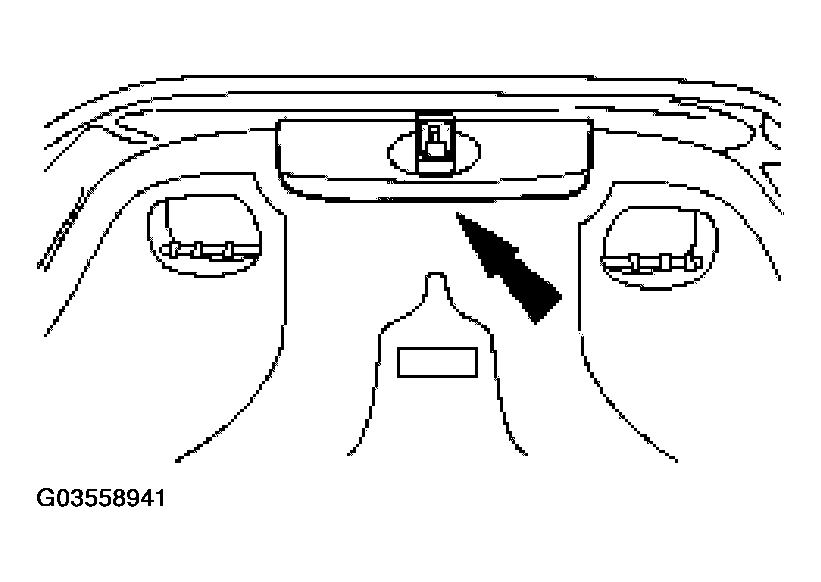

Remove the luggage compartment lid latch trim cover.

Fig 2: Removing Luggage Compartment Lid Latch Trim Cover
Courtesy of JAGUAR CARS, INC.
Remove the luggage compartment lid liner.
- Remove the courtesy lamp.

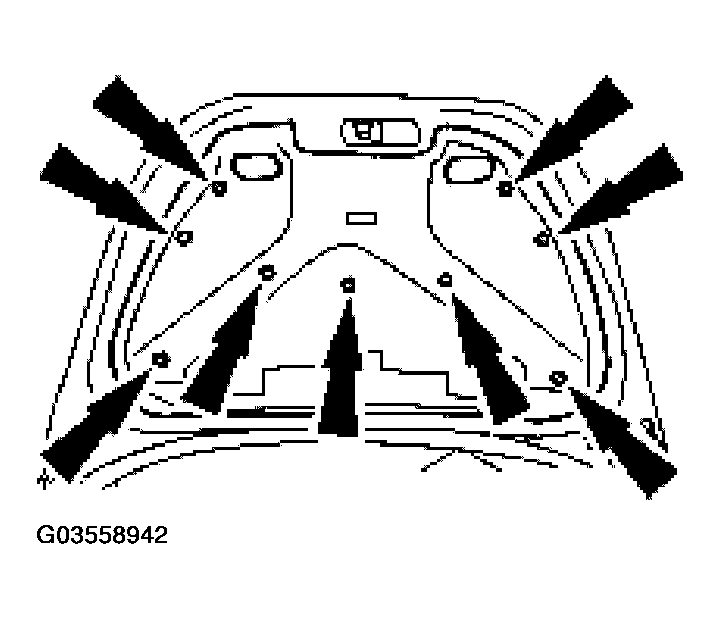

  Fig 3: Removing Luggage Compartment Lid Liner
  Courtesy of JAGUAR CARS, INC.
Detach the luggage compartment lid moulding.

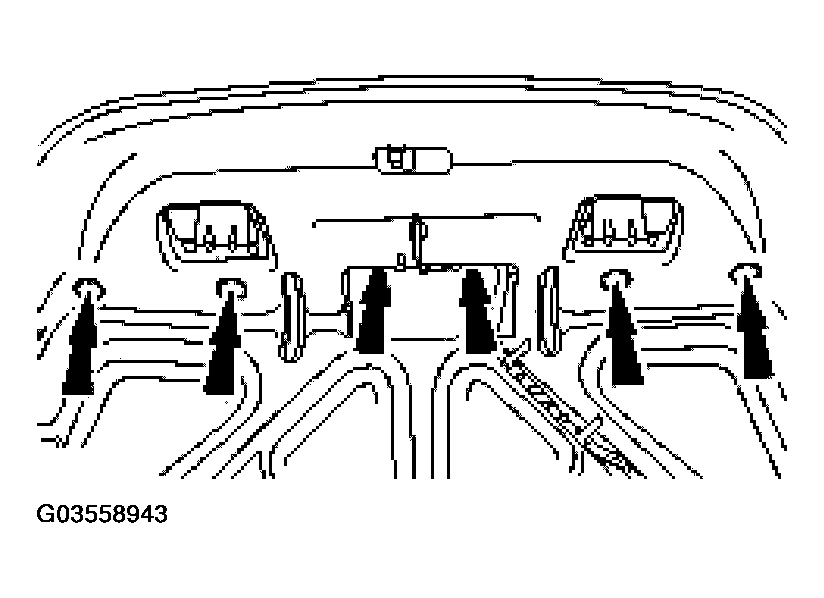

Fig 4: Detaching Luggage Compartment Lid Moulding
Courtesy of JAGUAR CARS, INC.
Remove the luggage compartment lid moulding.

Fig 5: Removing Luggage Compartment Lid Moulding
Courtesy of JAGUAR CARS, INC.
