Rear Door Tweeter Speaker: Removal

  1. Remove the rear door trim panel. INTERIOR TRIM AND ORNAMENTATION (2003.5-09)
  2. Disconnect the electrical connector.

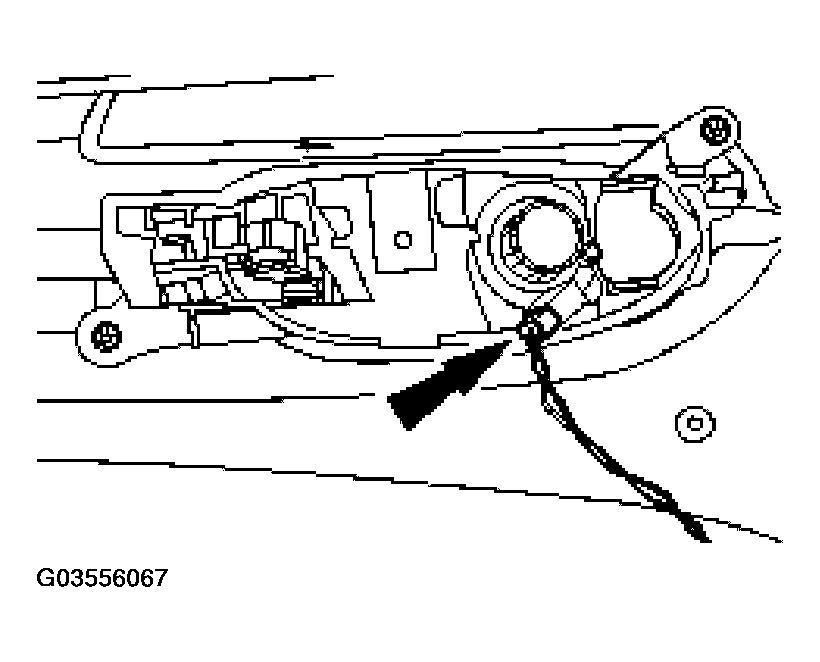

    Fig 1: Disconnecting Electrical Connector
    G03556067Courtesy of JAGUAR CARS, INC.
  3. Remove the tweeter speaker.

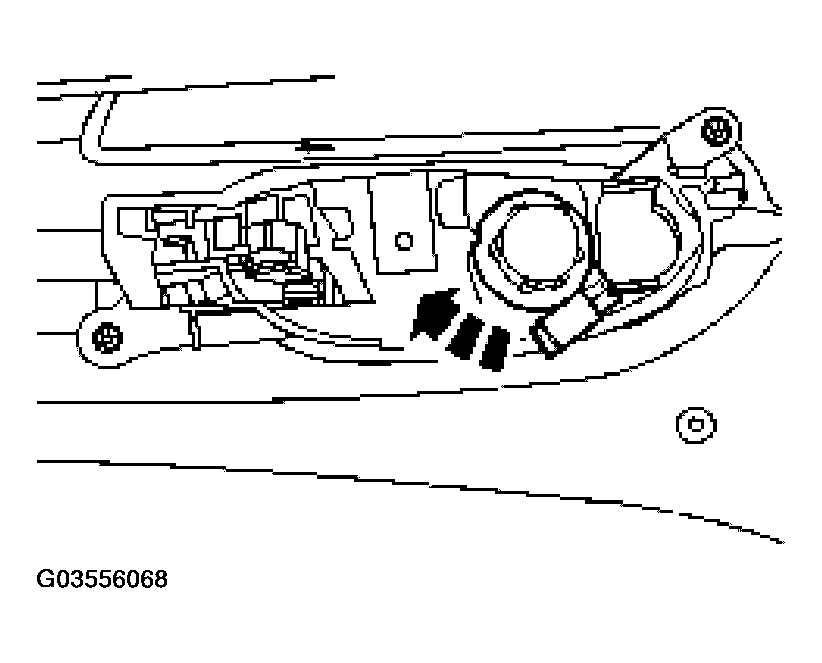

    Fig 2: Removing Tweeter Speaker
    G03556068Courtesy of JAGUAR CARS, INC.
