Rear Door Tweeter Speaker: Installation

  1. Install the tweeter speaker.

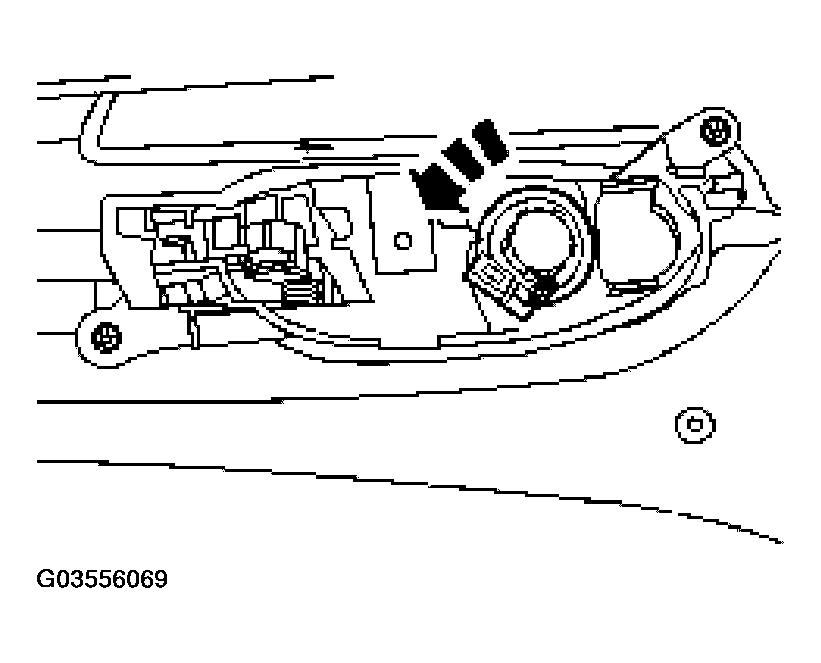

    Fig 1: Installing Tweeter Speaker
    G03556069Courtesy of JAGUAR CARS, INC.
  2. Connect the electrical connector.

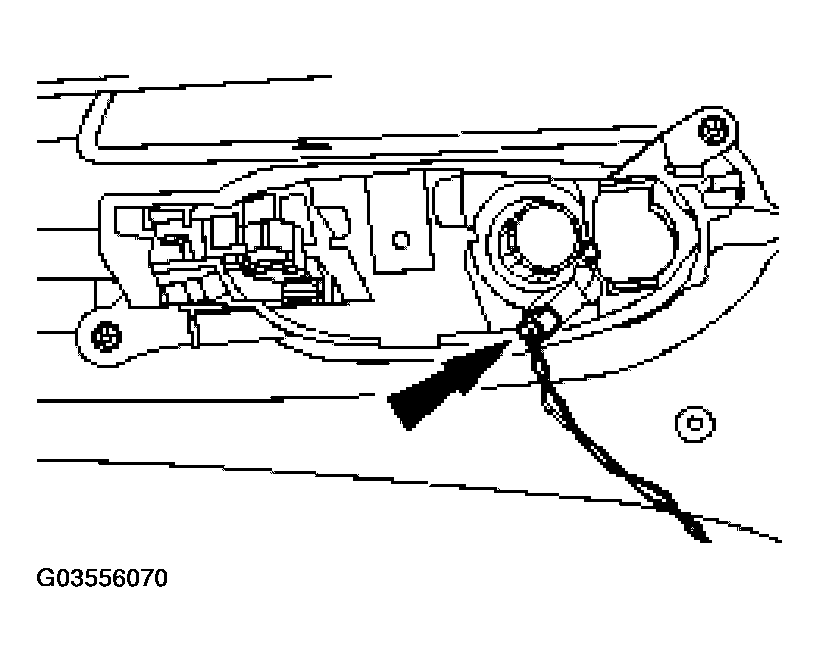

    Fig 2: Connecting Electrical Connector
    G03556070Courtesy of JAGUAR CARS, INC.
  3. Install the rear door trim panel. INTERIOR TRIM AND ORNAMENTATION (2003.5-09)
