Rear Door Speaker: Removal

  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION (2003.5-09) .
  2. Disconnect the rear door speaker electrical connector.

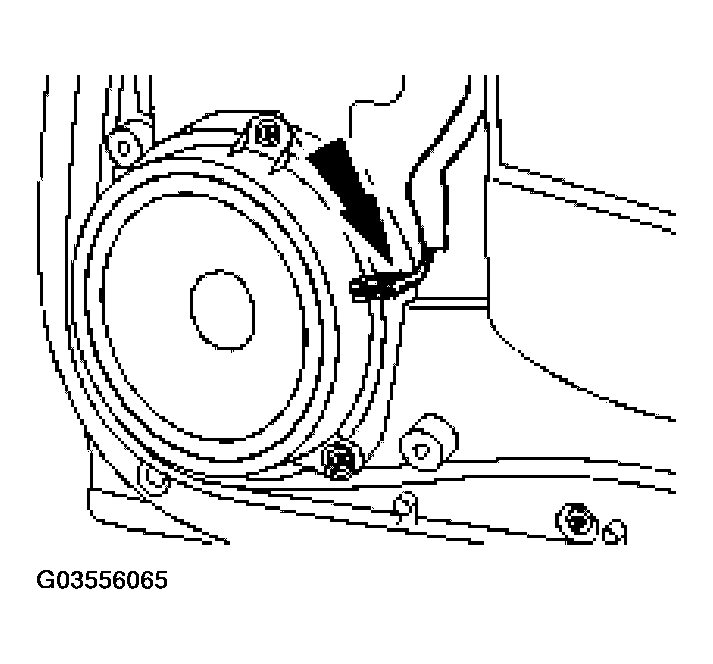

    Fig 1: Disconnecting Rear Door Speaker Electrical Connector
    G03556065Courtesy of JAGUAR CARS, INC.
  3. Remove the rear door speaker.

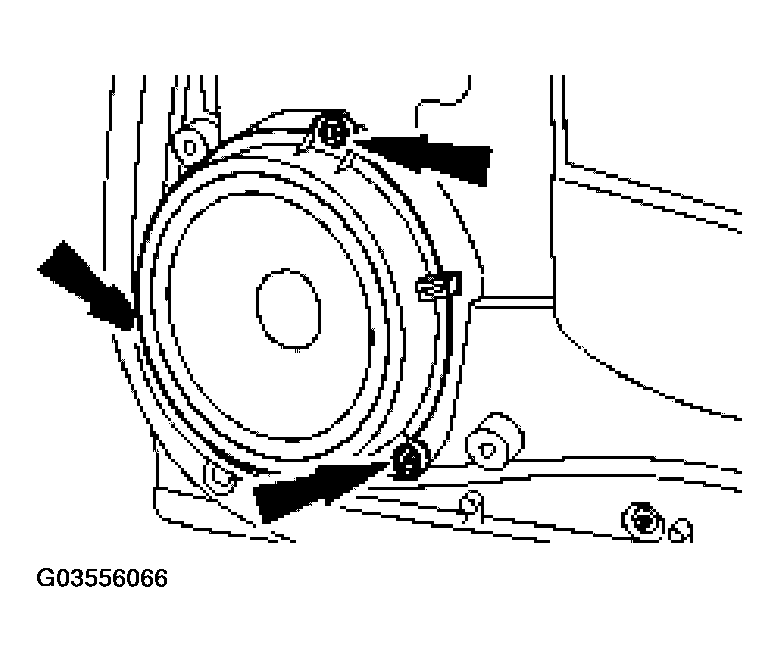

    Fig 2: Removing Rear Door Speaker
    G03556066Courtesy of JAGUAR CARS, INC.
