Instrument Panel Speaker: Removal

  1. Using a suitable tool ease the speaker cover from the instrument panel.

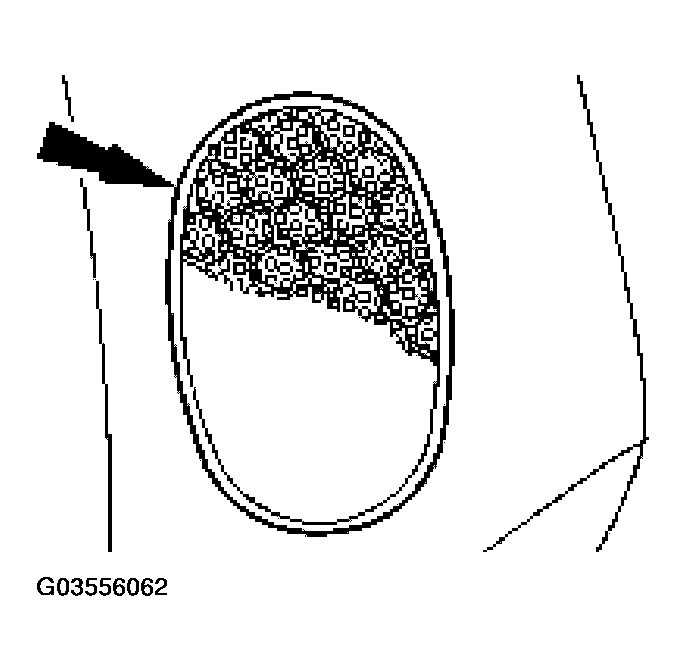

    Fig 1: Removing Speaker Cover From Instrument Panel
    G03556062Courtesy of JAGUAR CARS, INC.
  2. Detach the instrument panel speaker.

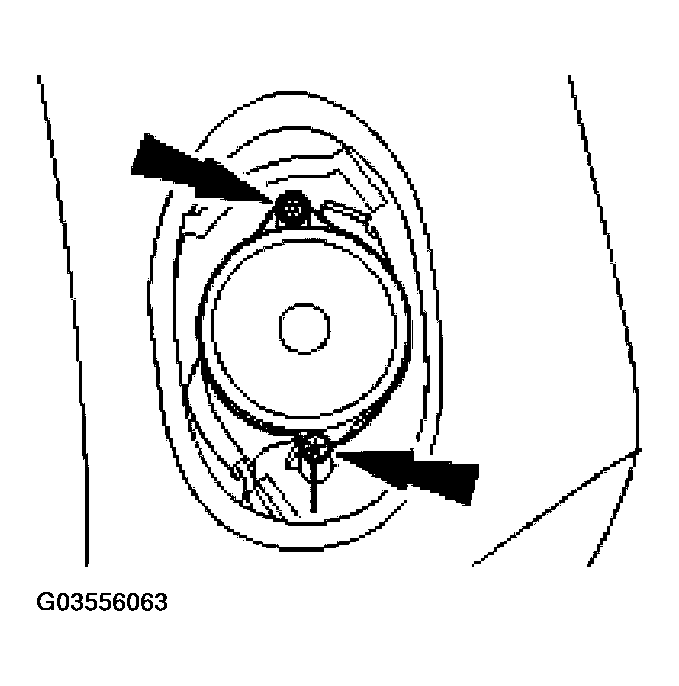

    Fig 2: Detaching Instrument Panel Speaker
    G03556063Courtesy of JAGUAR CARS, INC.
  3. Remove the instrument panel speaker.

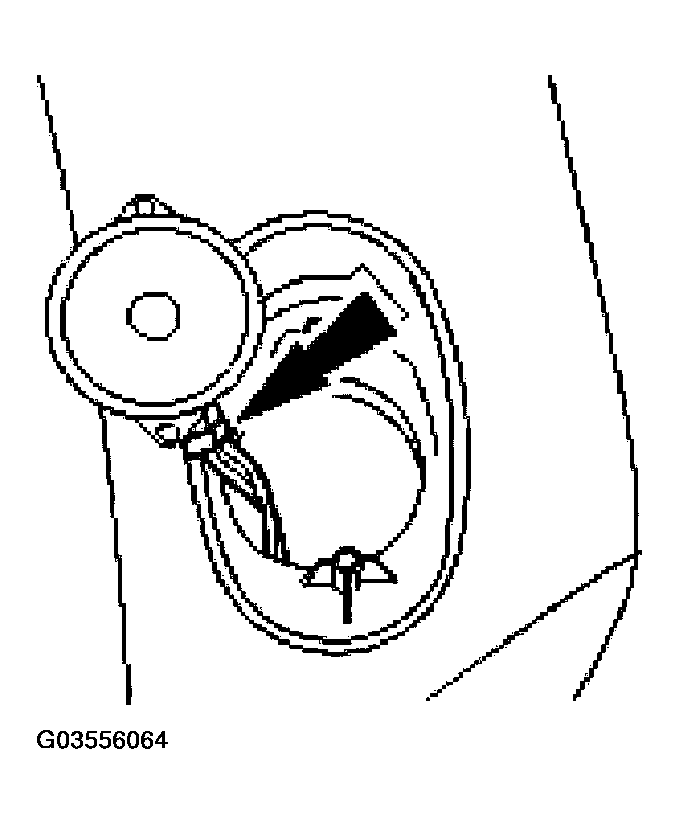

    Fig 3: Removing Instrument Panel Speaker
    G03556064Courtesy of JAGUAR CARS, INC.
