Front Door Speaker: Removal

  1. Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION (2003.5-09) .
  2. Disconnect the front door speaker electrical connector.

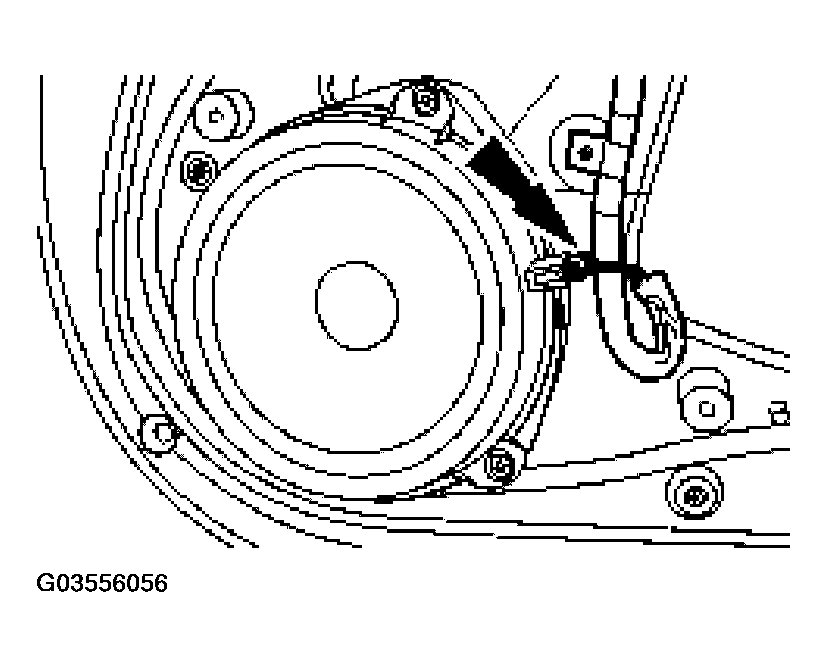

    Fig 1: Disconnecting Front Door Speaker Electrical Connector
    G03556056Courtesy of JAGUAR CARS, INC.
  3. Remove the front door speaker.

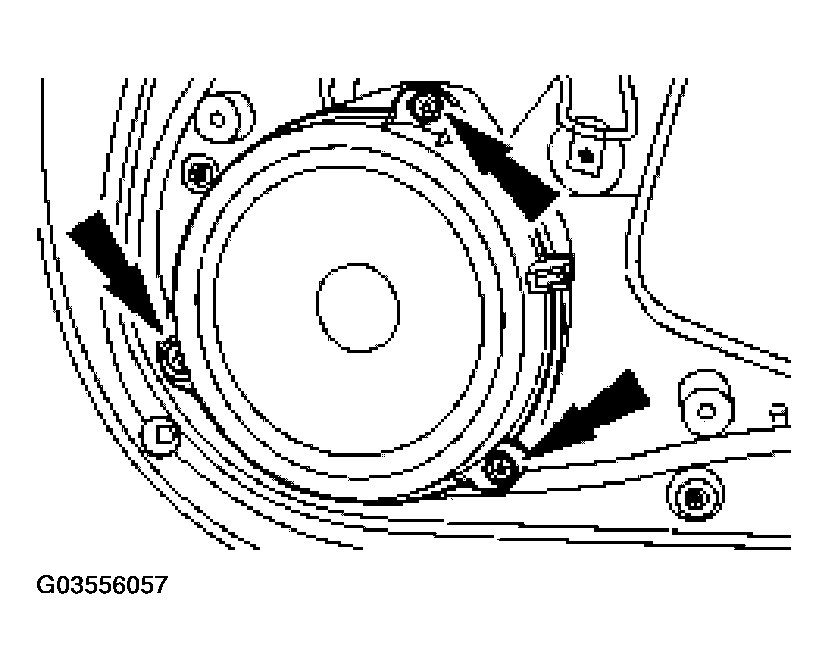

    Fig 2: Removing Front Door Speaker
    G03556057Courtesy of JAGUAR CARS, INC.
