Headlamp Adjustment

    NOTE: All adjustments should be made at room temperature.
  1. Prepare the vehicle for headlamp adjustment.
    • Place the vehicle on a level surface.
    • Before adjusting the headlamps, check them for faulty lenses, reflectors and blackened bulbs, and install new components as necessary.
    • Check the tire pressures and correct as necessary. << WHEEL & TIRES >>
    • The vehicle must be at normal unladen weight.
    • Normalize the suspension.
  2. Adjust the headlamp using the adjustment bolts.

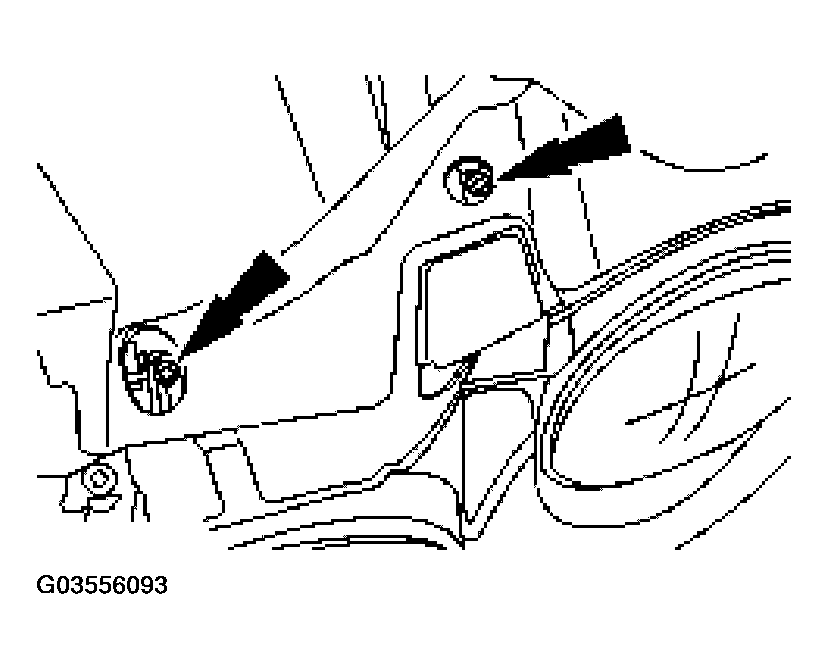

    Fig 1: Identifying Headlamp Adjustment Bolts
    G03556093Courtesy of JAGUAR CARS, INC.
