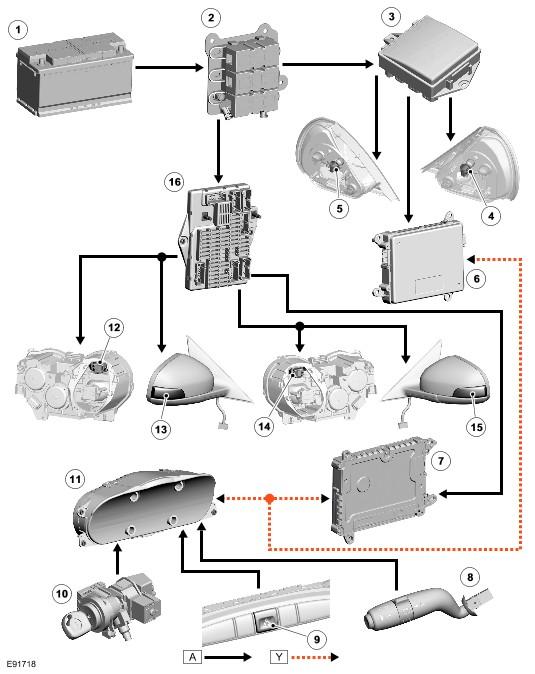

Control Diagram
NOTE:
A = Hardwired; Y = SCP (standard corporate protocol) network.
| Item | Part Number | Description |
|---|---|---|
| 1 | Battery | |
| 2 | Battery junction box | |
| 3 | Rear power distribution box | |
| 4 | LH (left-hand) rear direction indicator | |
| 5 | RH (right-hand) rear direction indicator | |
| 6 | REM (rear electronic module) | |
| 7 | FEM (front electronic module) | |
| 8 | Lighting switch | |
| 9 | Hazard warning switch | |
| 10 | Ignition switch | |
| 11 | Instrument cluster | |
| 12 | RH (right-hand) front direction indicator | |
| 13 | RH (right-hand) direction indicator repeater | |
| 14 | LH (left-hand) front direction indicator | |
| 15 | LH (left-hand) direction indicator repeater | |
| 16 | Passenger junction box |
