Parking Brake - VIN Range: G00442->G45703: Notes

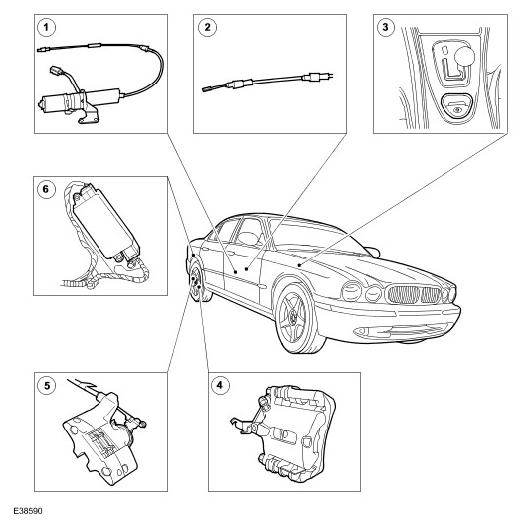

Fig 1: Identifying Parking Brake Components
G06387611Courtesy of JAGUAR CARS, INC.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Parking brake actuator
2 - Parking brake cable
3 - Parking brake switch
4 - Parking brake caliper (vehicles without Brembo brakes)
5 - Parking brake caliper (vehicles with Brembo brakes)
6 - Parking brake module
