Component Location
WARNING:
Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the eyes. Wash hands thoroughly after handling, as prolonged contact may cause irritation and dermatitis. If brake fluid contacts the eyes, flush the eyes with cold water or eyewash solution and seek medical attention. If taken internally, do not induce vomiting, seek immediate medical attention. Failure to follow these instructions may result in personal injury.

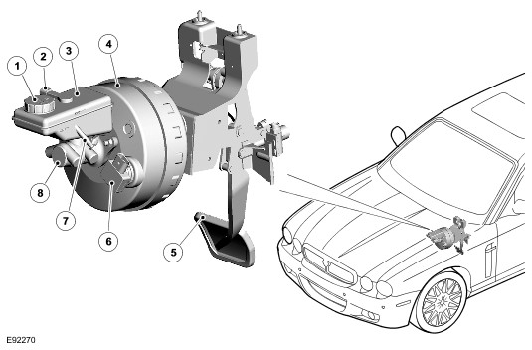

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | Brake fluid reservoir cap | |
| 2 | Brake fluid level sensor | |
| 3 | Brake fluid reservoir | |
| 4 | Brake booster | |
| 5 | Brake pedal | |
| 6 | Brake vacuum sensor (3.0L and 3.5L) | |
| 7 | Non return valve/vacuum supply | |
| 8 | Brake master cylinder |
