Instrument Cluster: Removal

  1. Lower and extend the steering column to its maximum rearward position.
  2. Disconnect the battery ground cable. Refer to BATTERY .
  3. Remove the centre console. Refer to INSTRUMENT PANEL AND CONSOLE (2003.5-09) .
    4. CAUTION: Make sure damage does not occur to the instrument panel finish panel.

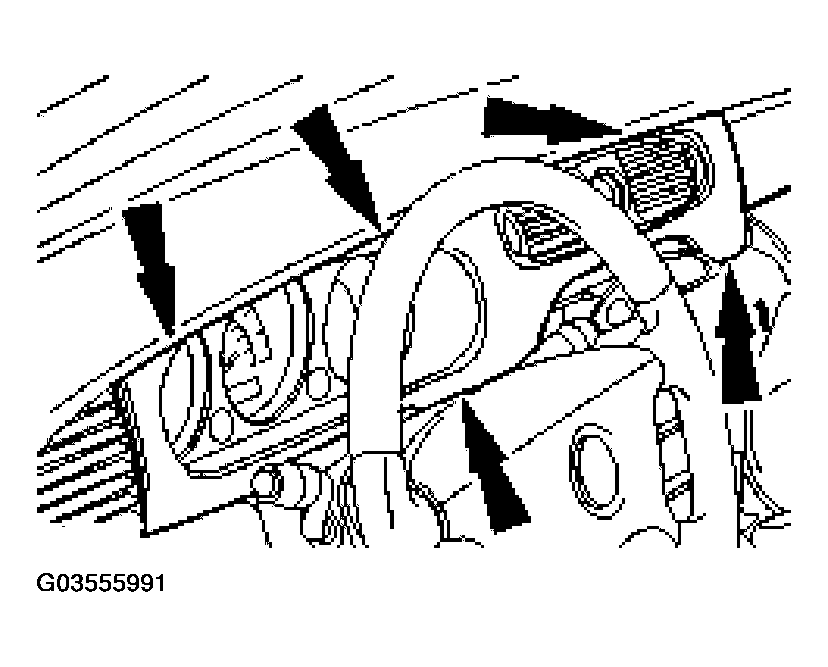

    Fig 1: Removing Instrument Panel Finish Panel
    G03555991Courtesy of JAGUAR CARS, INC.
  4. Remove the instrument panel finish panel.
  5. Remove the instrument cluster finish panel.

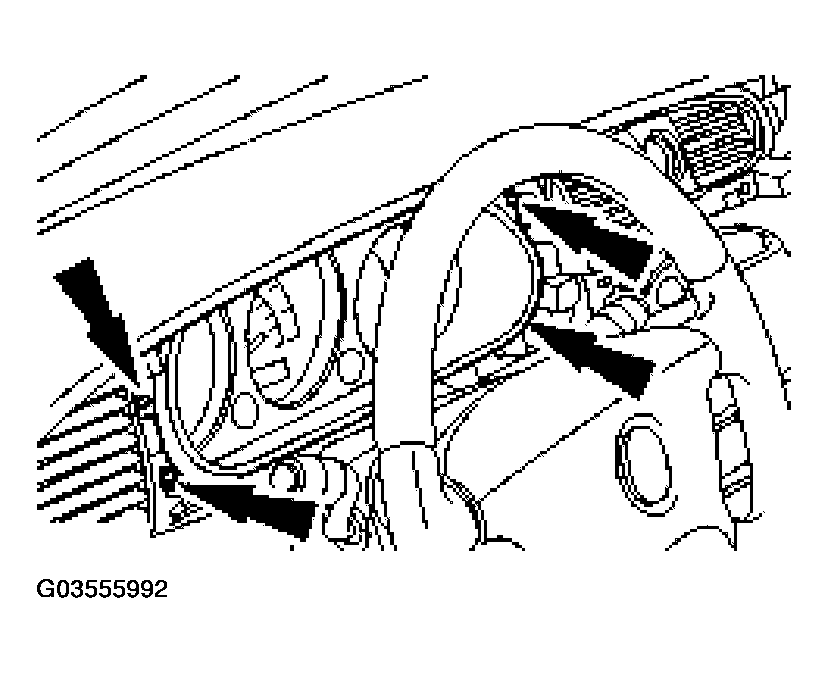

    Fig 2: Removing Instrument Cluster Finish Panel
    G03555992Courtesy of JAGUAR CARS, INC.
  6. Detach the instrument cluster.
    • Remove the instrument cluster retaining nuts.

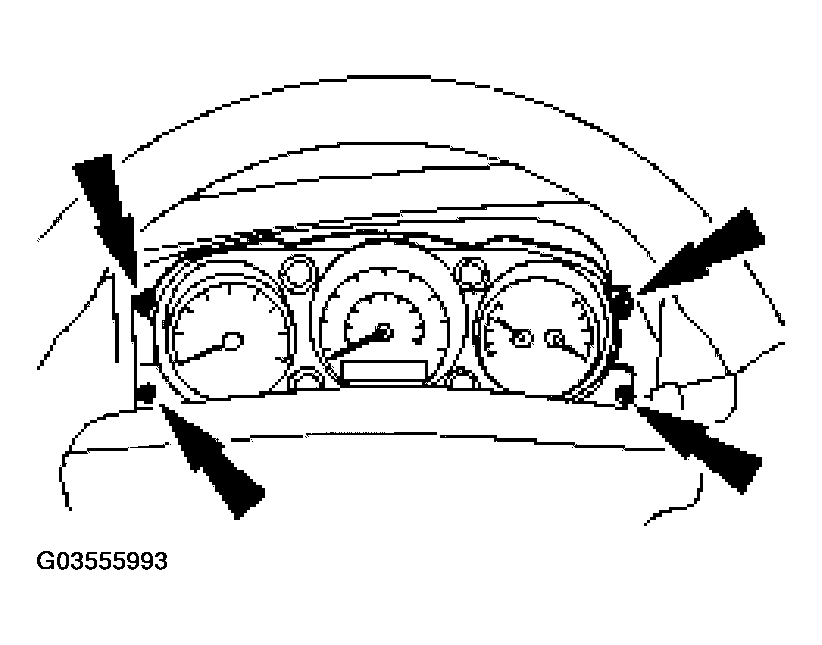

      Fig 3: Removing Instrument Cluster Retaining Nuts
      G03555993Courtesy of JAGUAR CARS, INC.
  7. Remove the instrument cluster.
    • Disconnect the electrical connectors.

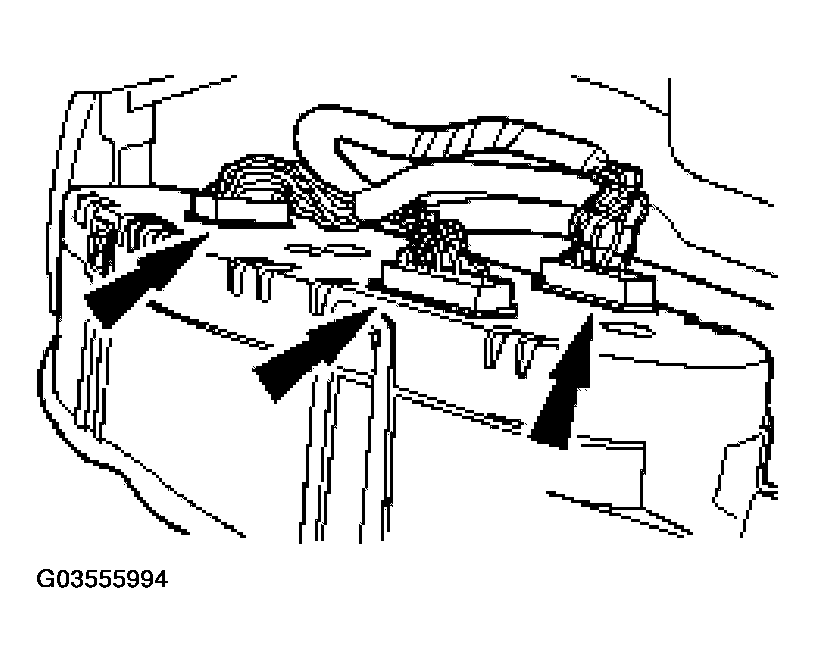

      Fig 4: Disconnecting Electrical Connectors
      G03555994Courtesy of JAGUAR CARS, INC.
