Information and Message Center: Notes

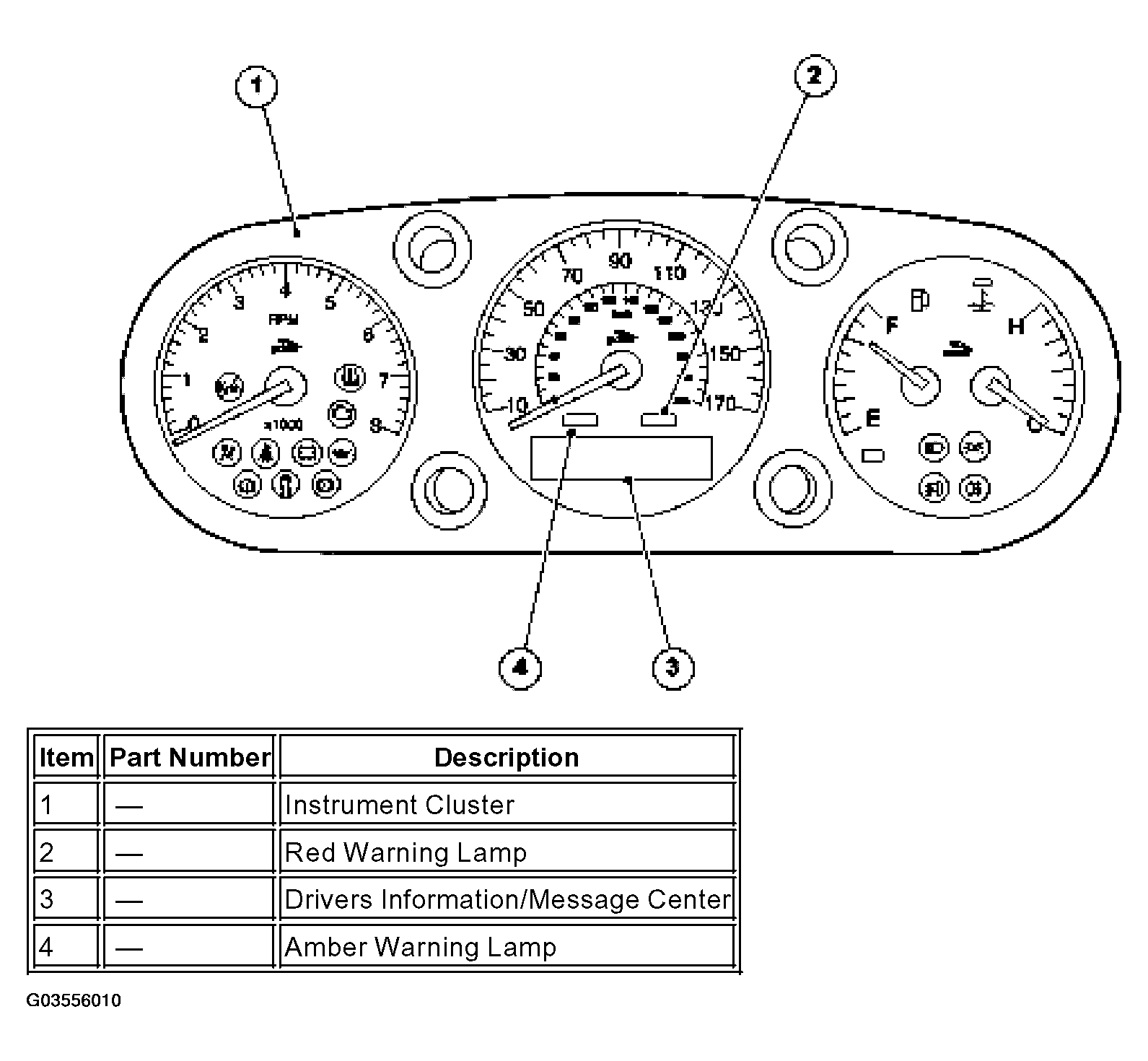

Fig 1: Identifying Information And Message Center Components
G03556010Courtesy of JAGUAR CARS, INC.

The drivers information and message center has a liquid crystal display (LCD) and is located in the lower area of the speedometer.

The message center displays messages in text form for the driver, including odometer readings and trip computer data. It can also provide information normally covered by conventional warning lamps or indicate that a feature such as the cruise control is operating.

Located above the message center are two lamps, red for warning and amber for caution. When a message is displayed, the appropriate lamp will illuminate to attract the drivers attention and to signify the importance of the message.
