Message Center switch

The message center switch operates the various functions of the message center.

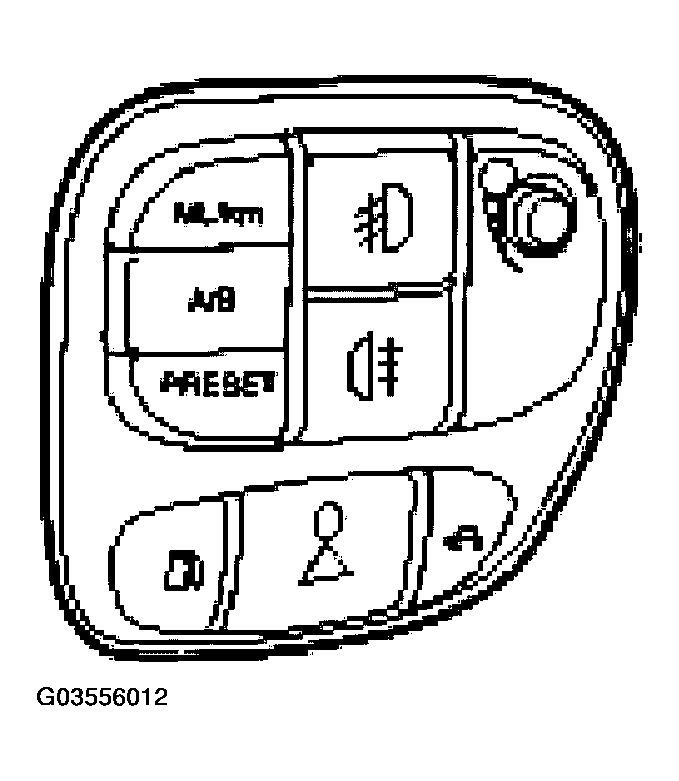

Fig 1: View Of Message Center Switch
G03556012Courtesy of JAGUAR CARS, INC.

The message center switch can be used to select trip memory A or B, switch the display between metric or imperial units or clear (hide) the displayed message.

Pressing the A/B switch and at the same time turning the ignition switch to position II will display the vehicle identification number. Pressing the ML/km switch and at the same time turning the ignition switch to position II will change the displayed language. Press the ML/km switch again to toggle the available languages. Press the A/B switch to select the desired language. Refer to the Drivers Handbook for full operating instructions.
