Brake Pedal: Removal

  1. Remove the brake booster and brake master cylinder. Refer to BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
  2. Remove the brake pedal position (BPP) switch.

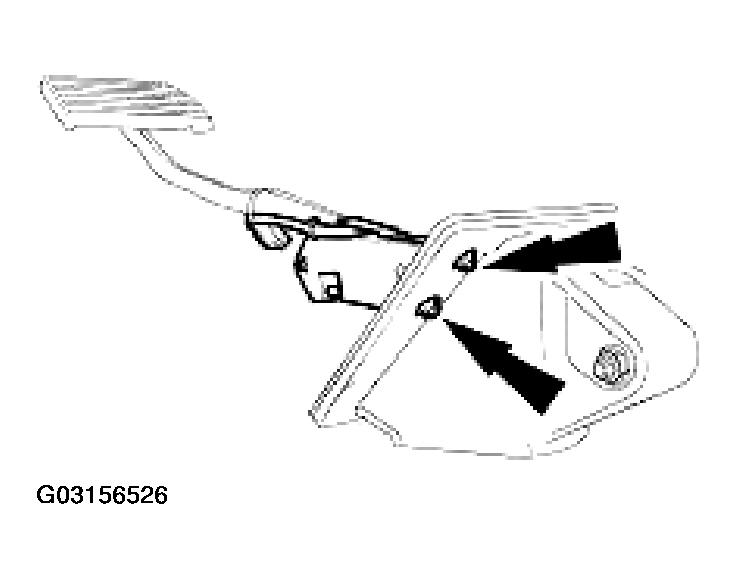

    Fig 1: Removing Brake Pedal Position (BPP) Switch
    G03156526Courtesy of JAGUAR CARS, INC.
  3. Remove brake pedal from pedal housing.
    • Remove nut.
    • Remove pivot pin.
    • Remove brake pedal.

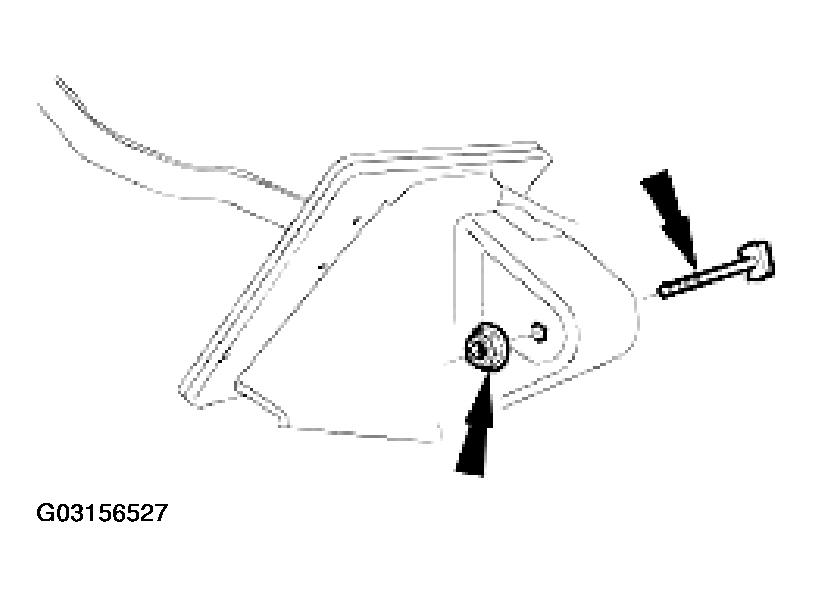

    Fig 2: Removing Brake Pedal From Pedal Housing
    G03156527Courtesy of JAGUAR CARS, INC.
  4. Clean components.
