Brake Pedal: Installation

  1. Install brake pedal to pedal housing.
    • Apply grease to pivot bush and pivot pin.
    • Align brake pedal in pedal housing.
    • Install pivot pin.
    • Install nut and tighten to 15-20 Nm.

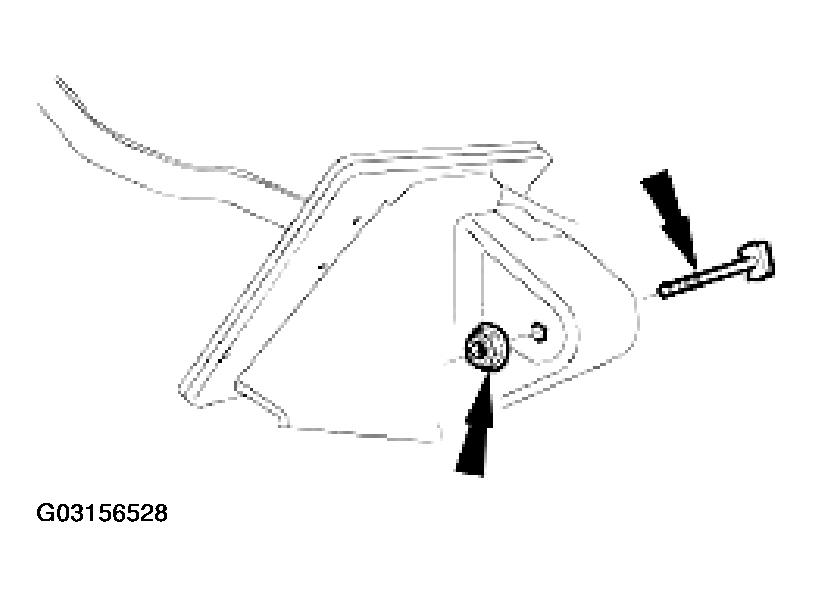

    Fig 1: Installing Brake Pedal To Pedal Housing
    G03156528Courtesy of JAGUAR CARS, INC.
    CAUTION: Make sure the BPP switch ratchet adjuster is fully released before installing.
  2. Install the BPP switch.
    • Tighten to 3 Nm.

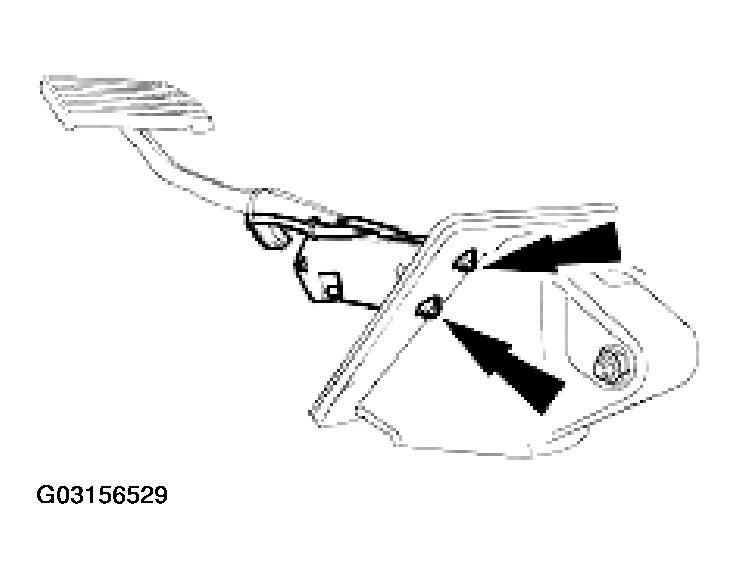

    Fig 2: Installing BPP Switch
    G03156529Courtesy of JAGUAR CARS, INC.
  3. Install the brake booster and brake master cylinder assembly. Refer to BRAKE BOOSTER AND BRAKE MASTER CYLINDER .
